Output Type:
AC Three Phase
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator

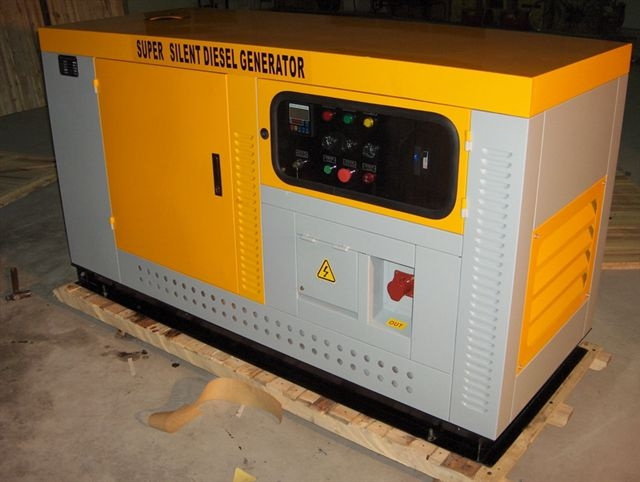

Product Description
Engine: PERKINS, 2506C-E15TAG1
Charge alternator: 24V
Governor: Electrical
Generator: STAMFORD, HCI544C
Single bearing alternator IP 23
Insulation class H/H
Radiator 50 degree max with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
24V battery and cable
Industrial muffler
User's manual
GEN-Set
Dimension(L×W×H)
Weight
OpenType
3450mm×1180mm×1920mm
3876Kg
SilentType
5200mm×1500mm×2686mm
5126Kg
Manufacturer/Model
PERKINS 2506C-E15TAG1 4-cycle
Cylinder/Arrangement
6/ L
Displacement
15L
BoreandStroke
137mm×171mm
Compressionratio
16 :1
RatedRPM
1500RPM
Max.standbypoweratratedRPM
451KW
Frequencyregulation,steadystate
± 0.25%
Governor:type
Electrical
Exhaustgasflow
94m³/min
Exhaust temperature
550 degree
Maxbackpressure
6.8kPA
Radiator&enginecapacity
58L
Maxwatertemperature
108degree
Thermostat
88-98degree
Manufacturer/Type
STAMFORD HCI544C
Numberofphasepower
3
Factor(CosPhi)
0.8
Pole:number
4
Bearing:number
1
Coupling
Direct
Excitertype
BrushlessSHUNT
lnsulation: class, temperature rise
H/H
protection
IP23
China Power Machinery Co. Ltd, Modern Power Machinery manufacturer, leading supplier in China, is a corporation of complementary business units that design, manufacture, distribute and service generators and related technologies, including diesel generator, diesel utility vehicle, snow blower, riding lawn mower, snowmobile, golf cart etc., specially focused in power products.
Headquartered in Shanghai, China, belong to the Group who employs approximately 2, 500 people worldwide, which was awarded AAA(1) Credit Certification by the PRC Ministry of Commerce, Shanghai AAA Credit Freight Forwarder industry, Shanghai Excellent Clearance AA Credit Enterprise, also rated to be Shanghai Famous Brand Service Supplier and Shanghai Key Enterprise, which enable the company to be listed on top 14 of nation-wide enterprises. Certified by ISO9001: 2008, we won the award of premium partner of Bank of China.
We have established good co-operative relationship with China Customs., China Commodity Inspection Department and other related departments, achieves an Annual turnover of 0.64 billion US$. Innovation, Quality Control and Cost Control are our main advantages, Global Quality Assurance for the Diesel Genset, Cummins is one important feature, for other Diesel Generators which combined with other brand engine (also they are worldwide fame), Power guarantee: If Compared with other China Factories, you will find our products:
1. Better Price if the Same Quality
2. Better Quality if the Same Price
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
