Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase

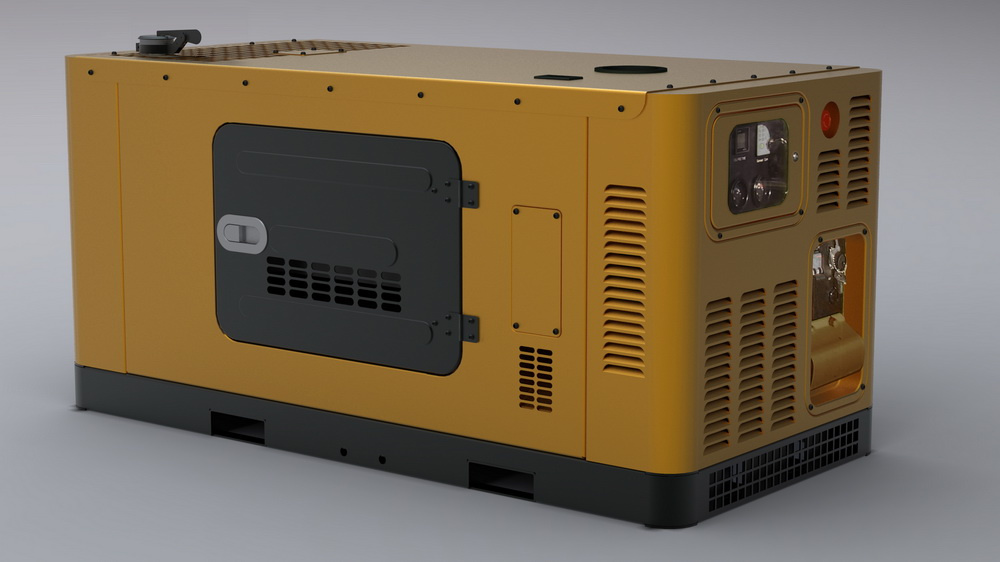

Product Description
Engine: PERKINS, 1103A-33TG2
Charge alternator: 12V
Governor: Electrical
Generator: STAMFORD, UCI224E
Single bearing alternator IP 23
Insulation class H/H
Radiator 50 degree max with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
12V battery and cable
Industrial muffler
User's manual
GEN-Set
Dimension(L×W×H)
Weight
OpenType
1740mm×820mm×1300mm
969Kg
SilentType
2396mm×1056mm×1723mm
1358Kg
Voltage
Hz
Phase
Powerfactor
StandbyAMP
StandbyRating
(KVA/KW)
PrimeRating
(KVA/KW)
400/230
50
3
0.8
96
66/53
60/48
Manufacturer/Model
PERKINS 1103A-33TG2 4-cycle
Cylinder/Arrangement
3/ L
Displacement
3.3L
BoreandStroke
105mm×127mm
Compressionratio
17.25 :1
RatedRPM
1500RPM
Max.stand bypowerat rated RPM
60.5KW
Frequencyregulation,steadystate
±0.75%
Governor:type
Electrical
Exhaustgasflow
10.4m³/min
Exhaust temperature
571 degree
Maxbackpressure
10kPA
Radiator&enginecapacity
10.2L
Maxwatertemperature
110degree
Thermostat
82-93degree
Manufacturer/Type
STAMFORD UCI224E
Numberofphasepower
3
Factor(CosPhi)
0.8
Pole:number
4
Bearing:number
1
Coupling
Direct
Excitertype
BrushlessSHUNT
lnsulation: class, temperature rise
H/H
protection
IP23
