| Prod Model: |
Ln20-600GFT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Speed: |
1000/1200rpm |
| Rated Frequency: |
50/60Hz |
| Phase: |
AC 3-Phase, 4 Wire |
| Engine Capacity: |
71.4L |
| Cylinder Number: |
12-V |
| Cylinder Bore: |
190mm |
| Stroke: |
210mm |
| Starting System: |
DC 24V Electric Motor |
| Cooling Method: |
Water Cooler |
| Lubricant Method: |
Passive and Flying Lubricant |
| Gas Source: |
Natural Gas |
| Power: |
600kw |
Product Description

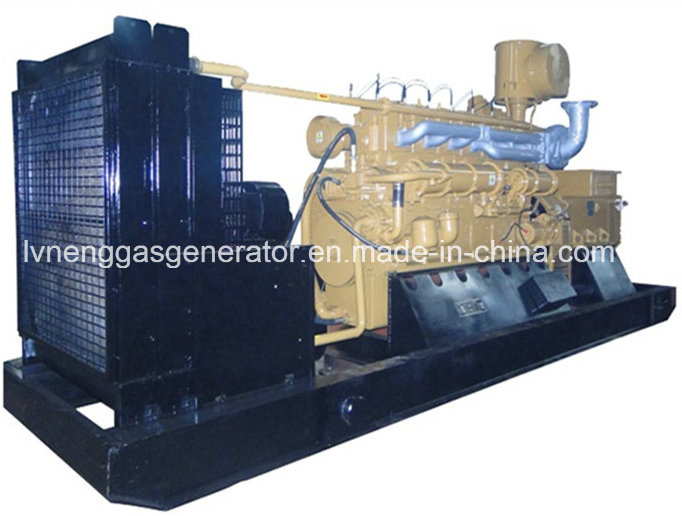

Electric Power Natural Gas Generator Price
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~45º C;
B) Relative humidity less than 90%(35º C);
C) Site elevation not higher than 2000m;
D) For outdoor installation, simple rain shelter is required.
Natural gas generator price Conditions for Using
1. Within 1m from pressure regulating valve of gas intake.
2. The ratio of CH4 in natural gas not less than 70%;
3. Pressure of natural gas: 80-200kpa, rate of pressure change less than 1kpa/min
4. H2S should not more than 200mg/Nm.
5. Impurity particle size not more than 5m, impurity content not more than 30mg/Nm
6. Moisture content not more than 40g/Nm.
Why you chioce Shandong Lvneng Power equipment Co., Ltd. Gas generator price?
1. Over 15 years produced gas/diesel generator experience;
2. Main products including diesel engines, biomass generator sets, natural gas generator sets,
Biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw;
3. Our workshop covering more than 40000 square meters, techincal engineer and afterservice more than 100 persons.
4. CE, ISO9001: 2008, ISO2001: 1400 etc. Certificats approve and passed many patents.
5. Export many countries in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia, Philippine,
Indonesia, and with some Africa countries etc.
6. We have some cooperative partners: Like water removal system, H2S removal system, gasified
Equipment, recovery system exhaust heat, CCHP system etc. So can offer you complete project proposal if you like.
Natural gas generator price Service:
1. Pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings like power station floor plan,
Engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.
2. Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators. Or you can send your staff to
Our company. We can train them till they can operate.
3. After-sale service:
(1)in our company, different people is in charge of different area, we will response periodically and support you technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.
| Model Number | LNNG20--600 |
| Brand Name | LVNENG |
| Rated Power | 20 KW-600KW |
| Rated Speed | 1000 rpm |
| Rated Frequency | 50 Hz/60hz |
| Rated Voltage | 400/230V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | F |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brushless |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
