| Prod Model: |
HF5000E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Single Phase |
Product Description

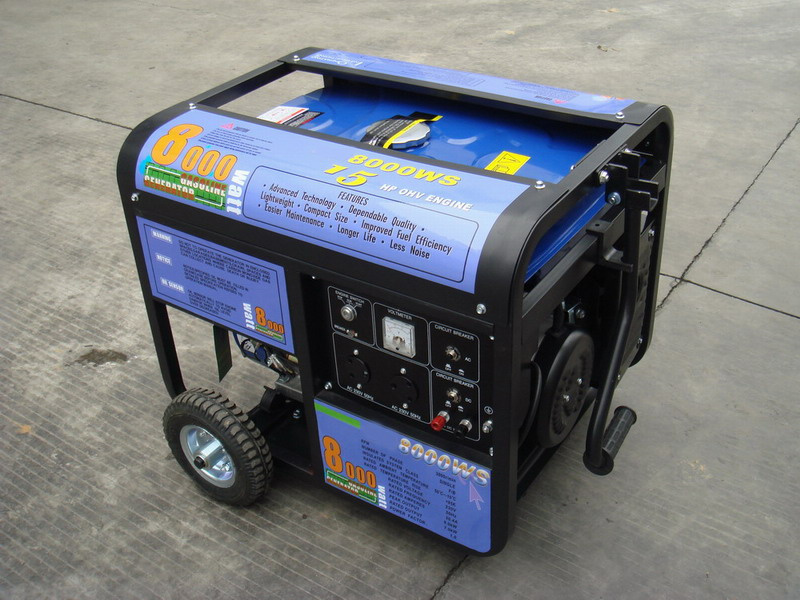

EPA Gasoline Generator/Gasoline Generator Set/Gasoline GensetEngine type: OHV forced air-cooled, 4-stroke
Displacement: 420ml
Fuel: Unleaded gasoline
Rated output: 6.0kVA
Max output: 7.5kVA
Frequency: 50Hz
Voltage: 230V
Phase: 1-phase
Starting system: Recoil hand start
Packing size: 700x560x580mm
G/N. Weight: 88/84kg
| GENERATOR | Model | HF950DC | HF1000 | HF2000E | HF2500E | HF3000E | HF3800E | HF4000E | HF5000E | HF6500E | HF8000E |
| Type | Brushless, singl-phase |
| Voltage regulate | Capacitor | AVR |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max Output(KVA) | 0.7/0.95 | 1.0/1.1 | 1.7/2.0 | 2.2/2.5 | 2.8/3.5 | 3.3/3.8 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 | 7.0/8.0 |
| Voltage(V) | 110/120/220/230/240 |
| Rated Output(KVA) | 0.65/0.8 | 0.9/1.0 | 1.5/1.8 | 2/2.2 | 2.5/3.0 | 3.0/3.5 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 | 6.0/6.5 |
| Power factor | COSΦ =1 |
| ENGINE | Type | OHV Forced Air-cooled 2-Stroke | OHV Forced Air-cooled 4-Stroke |
| Displacement(ml) | 62.8 | 86.5 | 163 | 163 | 196 | 242 | 270 | 337 | 389 | 420 |
| Max. output(HP/rpm) | 1.8/3600 | 2.4/3600 | 5.5/3600 | 5.5/3600 | 6.5/3600 | 8.0/3600 | 9.0/3600 | 11/3600 | 13/3600 | 15/3600 |
| Fuel tank capacity(L) | 4 | 5 | 15 | 25 | 25 |
| Continous operating hours(h) | 13.5 | 15 | 13 | 13 | 11 | 12.5 | 11 | 10 | 9 | 9 |
| Oil | two-stroke oil 50: 1 | SF or Higher grade |
| Oil capacity | x | 0.4 | 0.6 | 1.1 | 1.1 |
| Ignition system | C. D. 1 | C. D. 1 | T. C. I | T. C. I | T. C. I |
| Starting system | Recoil and hand-operated | Recoil and hand-operated /Electric start |
| PACKAGE | Dimension L*W*H(mm) | 385*335*340 | 480*410*425 | 600*450*470 | 700*525*580 | 700*560*580 |
| G. W(kg) | 22.5 | 69 | 41 | 42 | 52 | 69 | 74 | 77.5 | 86 | 100 |
| N. Wkg) | 20.5 | 65 | 39 | 40 | 48 | 65 | 70 | 73.5 | 82 | 96 |
| 20/40FT unit | 672/1428 | 335/675 | 240/475 | 140/460 | 140/260 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
