Shaft Type:
Horizontal or Vertical
Rated Power:
100kw~50mw
Rated Voltage:
400V, 3300V, 6300V, 10500V, Ect.
Frequency:
50Hz or 60Hz
Winding Insulation Class.:
F
Excitations:
SCR, DC Excitaiton Systems, AC Brushless
Color:
Blue, Green or Customized
Type:
Francis

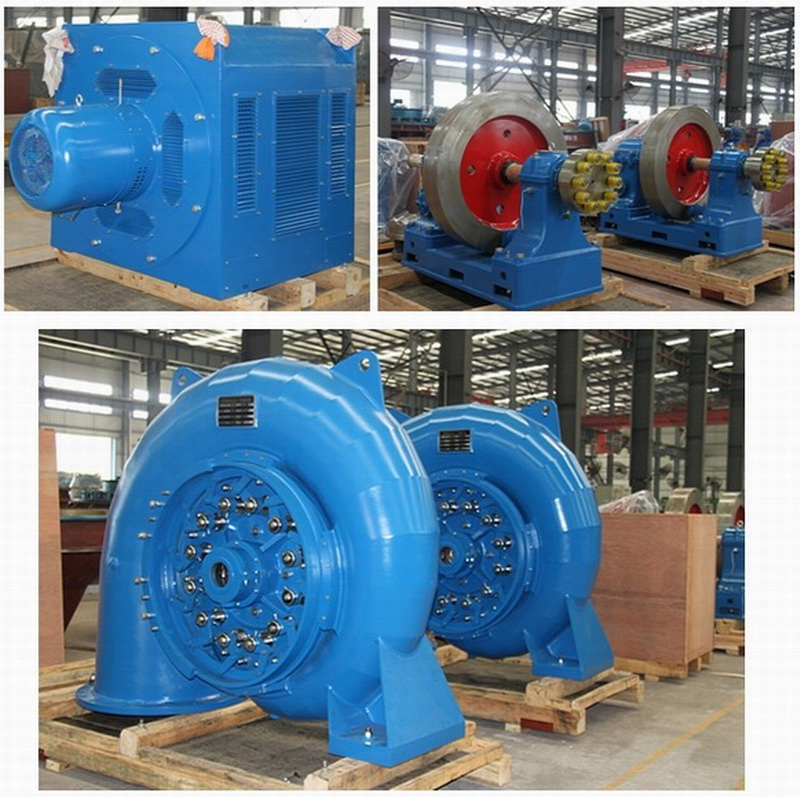

Product Description
The Francis turbine is a type of water turbine that was developed by James B. Francis. It is an inward flow reaction turbine that combines radial and axial flow concepts. Francis turbines are the most common water turbine in use today.
The Francis type turbines are mostly suitable for hydro-power stations with medium or high head. The Francis type turbines manufactured by the Fuchun are compact in structure, reasonable in design, convenient in operation and maintenance and excellent in efficiency.
They are in both vertical and horizontal shaft arrangement and can be vastly selected by the hydraulic power stations. With many years of our own experience and absorbing advanced technology from domestic and abroad sources, and in meeting ever growing requirements of stations for various hydraulic power resources, the manufacture and design level of Francis turbines made in Fuchun has been raised to new stages.
The Francis turbines manufactured by the Fuchun, are ranging from 10 to 300m in water head, 100kW to 50MW in capacity and 0.35 to 4.0 m in runner diameter.
Partial Reference of Data.
Hydro turbine
Generator
Speed governor
Type of Valve
Type
Design Head(m)
Design Flow(m 3 /s)
Power (Kw)
Rated Speed (r/min)
Type
Rated Power(Kw)
Rated Voltage(v)
HL110-WJ-50
39
0.48
139
750
SFW125-8/590
125
400
SDT-300/ YWT-300
Z945T-10DN500
43
0.54
178
SFW160-8/740
160
400
49
0.59
221
SFW200-8/740
200
400
58
0.62
278
1000
SFW250-6/740
250
400
66
0.67
352
SFW320-6/850
320
400
76
0.70
439
SFW400-6/990
400
400
HL110-WJ-60
51
0.83
356
750
SFW320-8/850
320
400
SDT-300/ YWT-300
Z945T-10DN500
59
0.9
437
SFW400-8/990
400
400
69
0.97
548
SFW500-6/990
500
400
HL110-WJ-60A
78
1.1
688
1000
SFW630-6/990
630
400
YWT-600
Z945T-10DN500
91
1.14
870
SFW800-6/1180
800
400
105
1.22
1070
SFW1000-6/1180
1000
400
123
1.33
1332
SFW1250-6/1180
1250
6300
HL110-WJ-71
65
1.28
690
750
SFW630-8/1180
630
400
YWT-600
Z945T-10DN600
73
1.4
870
SFW800-8/1180
800
400
84
1.54
1087
SFW1000-8/1180
1000
400
99
1.66
1344
SFW1250-8/1430
1250
6300
115
1.81
1720
1000
SFW1600-6/1430
1600
6300
Z941H-16DN600
130
1.95
2128
SFW200-6/1430
2000
6300
HL110-WJ-84
92
2.25
1720
750
SFW1600-8/1430
1600
6300
YWT-1000
Z941H-16DN800
106
2.42
2128
SFW2000-8/1430
2000
6300
122
2.68
2660
SFW2500-8/1730
2500
6300
144
2.92
3404
SFW3200-8/1730
3200
6300
Z941H-25DN800
166
3.09
4210
1000
SFW4000-6/1730
4000
6300
YWT-1800
188
3.35
5260
SFW5000-6/1730
5000
6300
174
17.02
25826
428.6
SF25-14/4100
25000
10500
YWT-8000
Hydro turbine
Generator
Speed governor
Type of Valve
Type
Design Head(m)
Design Flow(m 3 /s)
Power (Kw)
Rated Speed (r/min)
Type
Rated Power(Kw)
Rated Voltage(v)
HL160-WJ-50
45
1.05
359
1000
SFW320-6/850
320
400
SDT-300/ YT-300
Z945T-10DN600
58
1.12
559
SFW 500-6/990
500
400
HL160-WJ-60
54
1.53
696
750
SFW 630-8/1180
630
400
YWT-600
Z945T-10DN800
63
1.7
890
1000
SFW 800-6/1180
800
400
71
1.77
1090
SFW 1000-6/1180
1000
400
81
2.05
1370
SFW 1250-6/1180
1250
6300
95
2.11
1720
SFW 1600-6/1430
1600
6300
HL160-WJ-71
55
2.26
1086
750
SFW 1000-8/1180
1000
400
YWT-600
Z945T-10DN1000
63
2.45
1350
SFW 1250-8/1430
1250
6300
74
2.7
1720
SFW 1600-8/1430
1600
6300
87
2.88
2150
1000
SFW 2000-6/1430
2000
6300
YWT-1000
100
3.1
2680
SFW 2500-6/1430
2500
6300
HL160-WJ-84
59
3.26
1693
600
SFW1600-10/1430
1600
6300
YWT-1000
Z945T-16DN1000
68.5
3.49
2106
600
SFW2000-10/1730
2000
6300
79.5
3.75
2632
750
SFW 2500-8/1730
2500
6300
93.5
4.09
3368
750
SFW 3200-8/1730
3200
6300
HL220-WJ-50
30.2
1.41
355
750
SFW320-8/850
320
400
SDT-300/ YWT-300
Z941H-6DN700
35.0
1.54
447
750
SFW400-8/990
400
400
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
