Product Description

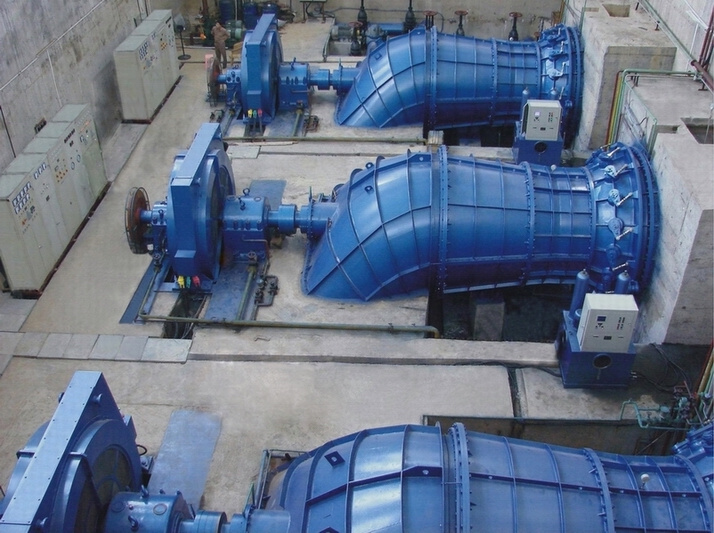

The tubular turbine requires less space than other turbines, a saving in civil costs is realized due to a smaller powerhouse and shallow requirements for the draft tube, which is equipped with adjustable wicket gates and adjustable runner blades. This arrangement provides the greatest possible flexibility in adapting to changing net head and changing demands for power output; Because the gates and blades can be adjusted to their optimum openings.
The tubular turbines are the best selection for exploitation of tidal power and hydraulic power with extremely low heads and extremely large flow rates. They have large discharge, high specific and high efficiency, and need less excavation.
They have been classified into Bulb, Pit, Siphon and "S" types in the light of their structural types.
At present, Fuchun has developed 16 varieties of tubular turbines, ranging from 2 to 25m in water head, 120KW to 16MW in capacity, and 0.8m to 5.8m in runner diameter. They offered the best selection for exploitation of low head hydropower resources in China.
Hydro turbine
Generator
Speed governor
Type
Design Head(m)
Design Flow (m³ /s)
Power (kW)
Rated Speed (r/min)
Type
Rated Power (Kw)
Rated Voltage (v)
GD008-WZ-200+25°
6.1
26.85
1374
214.3
SFW1250-28/2150
1250
6300
YWT-3000
GD008-WZ-225+17.5°
3
21.2
545
150
SFW500-40/2600
500
400
GWT-1800
3.6
22.3
692
150
SFW630-40/2600
630
6300
GWT-3000
4.2
24
869
166.7
SFW800-36/2600
800
6300
GWT-3000
GD008-WZ-225+20°
3.4
23.8
692
150
SFW630-40/2600
630
6300
GWT-3000
4
25.5
869
166.7
SFW800-36/2600
800
6300
GWT-3000
4.6
28
1086
187.5
SFW1000-32/2600
1000
6300
GWT-3000
GD008-WZ-250+10°
4.9
23.94
1040
166.7
SFW1000-36/2600
1000
6300
YWT-3000
5.8
26.79
1384
187.5
SFW1250-32/2600
1250
6300
YWT-3000
6.8
28.19
1715
187.5
SFW1600-32/2600
1600
6300
YWT-3000
GD008-WZ-250+15°
4.5
27.18
1079
166.7
SFW1000-36/2600
1000
6300
YWT-5000
5.2
29.22
1332
166.7
SFW1250-36/2600
1250
6300
YWT-5000
6.1
33.1
1772
187.5
SFW1600-32/2600
1600
6300
YWT-5000
7
34.23
2110
187.5
SFW2000-32/3250
2000
6300
YWT-5000
GD008-WZ-250+20°
4.8
32.8
1359
166.7
SFW1250-36/2600
1250
6300
YWT-5000
5.7
32.6
1770
166.7
SFW1600-36/3250
1600
6300
YWT-5000
6.6
38.5
2181
187.5
SFW2000-32/3250
2000
6300
YWT-5000
GD008-WZ-250+25°
5.4
38.76
1702
150
SFW1600-40/3250
1600
6300
YWT-5000
6.1
42.13
2168
166.7
SFW2000-36/3250
2000
6300
YWT-5000
GD008-WZ-260+17.5°
6.2
40.2
2127
187.5
SFW2000-32/3250
2000
6300
YWT-5000
7.2
42.4
2660
187.5
SFW2500-32/3250
2500
6300
YWT-5000
GD008-WZ-260+20°
5
40.2
1702
166.7
SFW1600-36/3250
1600
6300
YWT-5000
5.8
43.2
2127
187.5
SFW2000-32/3250
2000
6300
GWT-5000
6.9
45.3
2660
187.5
SFW2500-32/3250
2500
6300
GWT-7500
GD008-WZ-290+17.5°
3
33.4
869
115.4
SFW800-10/1430
800
400
GWT-3000
5.4
45.6
2127
150
SFW2000-40/3250
2000
6300
GWT-5000
GD008-WZ-290+20°
3.3
38.6
1086
115.4
SFW1000-10/1430
1000
6300
GWT-5000
5.1
49.2
2127
150
SFW2000-40/3250
2000
6300
GWT-7500
GD008-WZ-300+20°
3.2
39.6
1086
107.1
SFW1000-10/1430
1000
6300
GWT-5000
4.1
47.9
1702
125
SFW1600-8/1430
1600
6300
GWT-5000
5.6
54.7
2660
150
SFW2500-40/3250
2500
6300
GWT-7500
GD003-WZ-80+25°
6.2
3.45
181.8
500
SFW160-12/850
160
400
YWT-300
7.1
3.7
227.7
500
SFW200-12/850
200
400
YWT-300
8.1
3.95
274.7
600
SFW250-10/850
250
400
YWT-300
9.5
4.28
351.6
600
SFW320-10/990
320
400
YWT-600
GD003-WZ-100+10°
4.6
3
115
375
SFW100-16/850
100
400
YWT-300
5.2
3.19
143.3
428.6
SFW125-14/850
125
400
YWT-300
Hydro turbine
Generator
Speed governor
Type
Design Head(m)
Design Flow (m³ /s)
Power (kW)
Rated Speed (r/min)
Type
Rated Power (Kw)
Rated Voltage (v)
GD003-WZ-80+10°
8.1
3.98
278.6
500
SFW250-12/990
250
400
YWT-300
9.6
4.34
353.6
600
SFW320-10/990
320
400
YWT-600
GD003-WZ-80+15°
7.3
4.46
277.8
428.6
SFW250-14/990
250
400
YWT-600
8.6
4.84
354
500
SFW320-12/990
320
400
YWT-600
10
5.22
450.4
500
SFW400-12/1180
400
400
YWT-600
11.3
5.62
531.3
600
SFW500-10/1180
500
400
YWT-600
GD003-WZ-120+25°
7.2
5.83
351.6
428.6
SFW320-14/1180
320
400
YWT-600
8.2
6.21
430
428.6
SFW400-14/1180
400
400
YWT-600
9.6
6.72
523.6
500
SFW500-12/1180
500
400
YWT-600
11.3
7.29
659.7
500
SFW630-12/1430
630
6300
YWT-1000
GD003-WZ-120+10°
6.4
5.1
277.7
428.6
SFW250-14/990
250
400
YWT-600
7.5
5.52
357.4
428.6
SFW320-14/1180
320
400
YWT-600
8.7
5.95
446.6
500
SFW400-12/1180
400
400
YWT-600
10.1
6.41
523.6
500
SFW500-12/1180
500
400
YWT-1000
GD003-WZ-120+15°
6.7
6.15
355.7
375
SFW320-16/1180
320
400
YWT-600
7.8
6.64
446.8
375
SFW400-16/1180
400
400
YWT-600
9.1
7.16
562.8
500
SFW500-12/1180
500
400
YWT-1000
10.6
7.73
663.2
500
SFW630-12/1430
630
400
YWT-1000
GD003-WZ-120+25°
6.5
7.96
437.1
375
SFW400-16/1180
400
400
YWT-1000
7.6
8.61
549.4
375
SFW500-16/1430
500
400
YWT-1000
8.8
9.27
684.7
375
SFW630-16/1430
630
6300
YWT-1000
10.2
9.27
860.2
428.6
SFW800-14/1430
800
6300
YWT-1000
GDM003-WZ-120+10°
7.1
7.31
448.1
375
SFW400-16/1180
400
400
YWT-1000
8.2
7.85
556.2
375
SFW500-16/1430
500
400
YWT-1000
9.6
8.5
704.6
428.6
SFW630-14/1430
630
6300
YWT-1000
11.2
9.18
887.8
428.6
SFW800-14/1430
800
6300
YWT-1000
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
