G128 & Sc15g Series150-270kw Marine Generator, Sdec Engine with Marathon Alternator

Name: G128 & Sc15g Series150-270kw Marine Generator, Sdec Engine with Marathon Alternator
Brand: aboutgenerator.com
SKU: 675142541
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 30000/Set
Trade Terms:	FOB,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Zhongshan Chuangyuan Power Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	250GFC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel Oil:	MGO Only
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Basic Diesel Generator
Output Type:	AC Three Phase
Landuse Type Of Unit:	Marine

Product Description

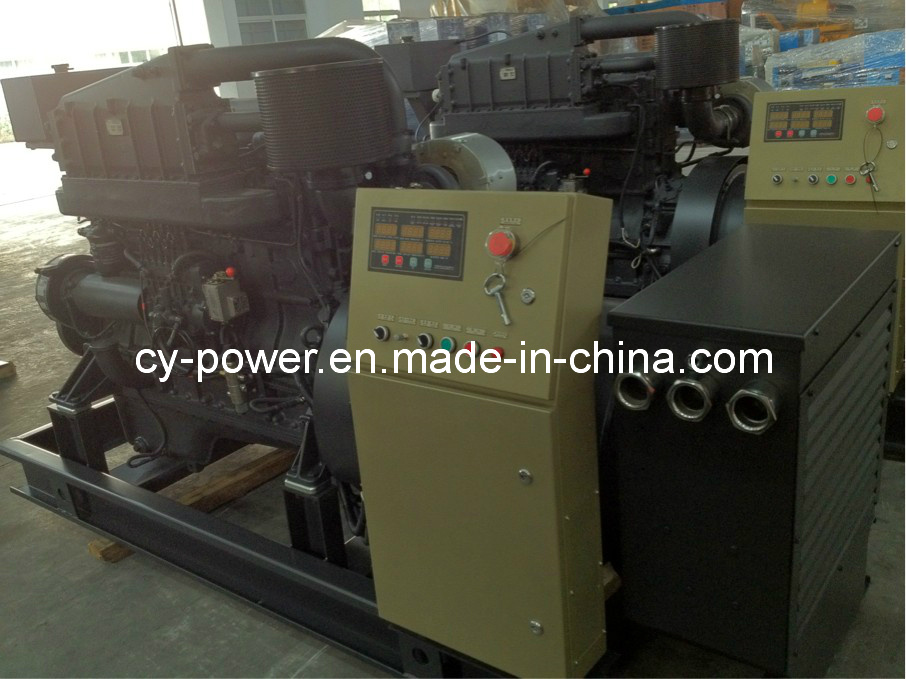

Marine Generator

Model: 250GFC
Brand: CY Power
Rated power: 250 KW / 312.5 kVA
Rated speed: 1500 r/min
Connecting method: 3 phase & 4 wire
Rated voltage: 400V
Rated current: 451A
Power factor: 0.8LAG
Dimension (L× B× H): 2680 * 950 * 1659 mm
Net weight: 2550 KG

Diesel engine

Model: G128ZLCaf3 (4 stroke, Turbocharged & Intercooled, Cooling by Heat Exchanger)
Brand: ShangHai Diesel (SDEC)
Rated power: 276 KW
Rated speed: 1500 r/min

Generator

Model: MP-H-250-4
Brand: Marathon
Insulation: Class H
Protection Level: IP23

Model	Length	Width	Height
CCFJ150	2780	811	1660
CCFJ170	2830	811	1660
CCFJ190	2830	811	1660
CCFJ210	2900	811	1660
CCFJ240	2900	811	1660
CCFJ270	3000	980	1660
UNIT :mm

Genset Model	Engine Model	Rated Power (kW)	Fuel Consumption at Rated Power (L/hr)	Genset Rated & Standby Output (k W / kVA)	Genset Frequency (Hz)	Genset Rated Voltage (V) & Current (A)	Genset Net Weight (KG)
CCFJ150	G128ZLCaf	180	39.7	150/187 & 165/206	50	400 & 271	2040
CCFJ170	G128ZLCaf1	198.5	44.9	170/212 & 187/234	50	400 & 310	2200
CCFJ190	G128ZLCaf2	240	50.2	190/237 & 209/261	50	400 & 346	2210
CCFJ210	G128ZLCaf2	240	55.5	210/262& 231/289	50	400 & 375	2420
CCFJ240	G128ZLCaf3	276	63.4	240/300 & 264/330	50	400 & 426	2500
CCFJ270	SC15G500CF2	320	71.4	270/337 & 297/371	50	400 & 491	2680
