Prod Model: |
QF Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Certificate: |
CE, EPA, Euii, Carb |
Power Range: |
1kw to 5kw |
Color: |
Red |
Voltage: |
230V |
Speed: |
3600rpm |
Type Of Generator: |
Portable |
Fuel: |
Petrol |
Cooling Method: |
Aircooled |
Warranty: |
1000 Hours or 1 Year |
Start Method: |
Electric Start |
Output Type: |
AC Single Phase |
Product Description

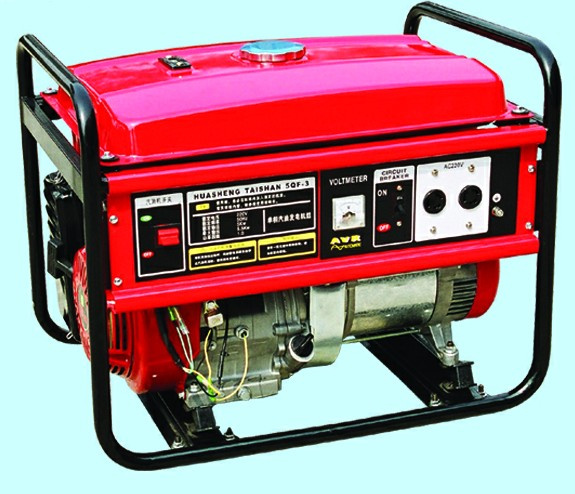

Portable gasoline generator
1kW to 5kW, AC single phase
Aircooled, OHV engine
Low gas consumption
CE certificate
|
1QF-3 |
2QF-3 |
2.5QF-3 |
3QF-3 |
Engine |
2.4HP Air Cooled OHV
152FD Engine |
5.5HP Air Cooled OHV
168FD-3 Engine |
6.5HP Air Cooled OHV
168FAD-3 Engine |
8.0HP Air Cooled OHV
173FE Engine |
Output voltage |
AC 220V |
AC 220V |
AC 220V |
AC 220V |
Output frequency |
50Hz |
50Hz |
50Hz |
50Hz |
Continuous operating hour |
≥ 8h |
≥ 8h |
≥ 8h |
≥ 8h |
Rated power Output |
0.8Kw |
2Kw |
2.5Kw |
3Kw |
Max. Power Output |
1.0 Kw |
2.2 Kw |
2.8Kw |
3.3Kw |
Iron core length |
54 |
85.5 |
100 |
86.5 |
Install center distance |
250 |
292 |
297 |
325 |
Tank gauge |
1.2 Gallon(5.5L) |
3.2 Gallon(15L) |
3.2 Gallon(15L) |
5.4 Gallon(25L) |
Phase |
single-phase |
single-phase |
single-phase |
single-phase |
Starting system |
Starting with hand |
Starting with hand |
Starting with hand |
Starting with hand |
Power parameter |
1.0 |
1.0 |
1.0 |
1.0 |
Weight |
25 (27)kg |
45 (47)kg |
46 (48)kg |
68(70)kg |
Panel feature |
Standard features
[1]power switch one
[2]breaker one(for 220V)
[3]voltmeter one
[4]220V socket one
[5]220V pin one
[6]DC socket one
[7]DC pin one
[8]DC protector tube one
[9]Working indicator light one
Outer packing size: 460× 370× 390 |
Standard features
[1]power switch one
[2]breaker one(for 220V)
[3]voltmeter one
[4]220V socket one
[5]220V pin one
Optional features
[6]DC connector two
[7]DC protector tube one
[8]Working indicator light one
Outer packing size: 600× 460× 475 |
Standard features
[1]power switch one
[2]breaker one(for 220V)
[3]voltmeter one
[4]220V socket one
[5]220V pin one
Optional features
[6]DC connector two
[7]DC protector tube one
[8]Working indicator light one
Outer packing size: 600× 460× 475 |
Standard features
[1]power switch one
[2]breaker one(for 220V)
[3]voltmeter one
[4]220V socket two
[5]220V pin two
Optional features
[6]DC connector two
[7]DC protector tube one
[8]Working indicator light one
Outer packing size: 700× 525× 586 |
Remark |
Standard features are necessary for Panel, Optional features follow to consumer, s |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
