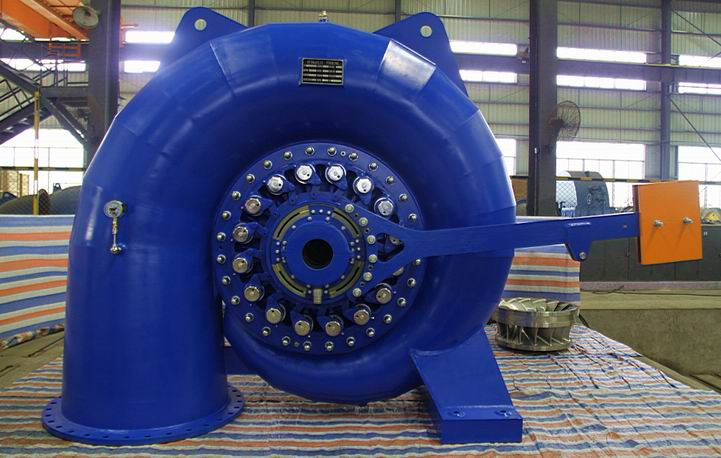

Horizonta Francis Turbine / Turbine Generator Unit / Generator / Turbine / High Quality

Name: Horizonta Francis Turbine / Turbine Generator Unit / Generator / Turbine / High Quality
Brand: aboutgenerator.com
SKU: 687058582
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Fuchun Industry Development Co., Ltd. Shenzhen

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	as Your Require
Made Style:	Manufacture and OEM
Export Markets:	Global
Standand:	Standand and Unstandand
Technology:	Stainless Steel Chain
Casting:	Sand Casting Die Casting Precision Casting
Structure (For Chain):	Rings Chain
Usage:	Transmission Chain, Transportation Chain, Dedica
Series:	Customized
Color:	Solid Color
Chain Size:	Customized Sizes

Product Description

The Francis turbine is a type of water turbine that was developed by James B. Francis. It is an inward flow reaction turbine that combines radial and axial flow concepts. Francis turbines are the most common water turbine in use today.

The Francis type turbines are mostly suitable for hydro-power stations with medium or high head. The Francis type turbines manufactured by the Fuchun are compact in structure, reasonable in design, convenient in operation and maintenance and excellent in efficiency. They are in both vertical and horizontal shaft arrangement and can be vastly selected by the hydraulic power stations. With many years of our own experience and absorbing advanced technology from domestic and abroad sources, and in meeting ever growing requirements of stations for various hydraulic power resources, the manufacture and design level of Francis turbines made in Fuchun has been raised to new stages.

The Francis turbines manufactured by the Fuchun, are ranging from 10 to 300m in water head, 100kW to 50MW in capacity and 0.35 to 4.0 m in runner diameter.

Partial Reference of Data

Hydro turbine					Generator			Speed governor	Type of Valve
Type	Design Head (m)	Design Flow (m³/s)	Power (kW)	Rated Speed (r/min)	Type	Rated Power (Kw)	Rated Voltage (v)	Speed governor	Type of Valve
HL220-WJ-60	35.8	2.36	689	750	SFW630-8/1180	630	400	YWT-600	Z941H-10 DN800
	42	2.52	860		SFW800-8/1180	800	400
	48.6	2.71	1062		SFW1000-8/1180	1000	400
	56.5	2.87	1314	1000	SFW1250-6/1180	1250	6300
	64.9	3.14	1692	1000	SFW1600-6/1430	1600	6300
HL220-WJ-71	33	3.1	861	600	SFW800-10/1430	800	400	YWT-600	Z941H-10 DN1000
	38	3.33	1064		SFW1000-10/1430	1000	400
	44	3.67	1337		SFW1250-10/1430	1250	6300
	51	3.88	1684	750	SFW1600-8/1430	1600	6300	YWT-1000
	59	4.18	2093	750	SFW2000-8/1730	2000	6300	YWT-1000
HL220-WJ-84	26	3.86	871	428.6	SFW800-14/1430	800	400	YWT-600	PDF55- WY120
	30	4.18	1075	500	SFW1000-12/1430	1000	400	YWT-600
	35	4.45	1344		SFW1250-12/1730	1250	6300	YWT-1000
	42	4.75	1711		SFW1600-12/1730	1600	6300
	48	5.19	2151	600	SFW2000-10/1730	2000	6300
	55	5.74	2660	600	SFW2500-10/1730	2500	6300
	23.5	10.09	2128	250	SF2000-24/2600	2000	6300	YWT-1800
	27.3	10.85	2659	250	SF2500-24/2600	2500	6300	YWT-1800
	32.1	11.76	3388	300	SF3200-20/3250	3200	6300	YWT-1800
	37.3	12.64	4232	300	SF4000-20/3250	4000	6300	YWT-3000
	43.4	13.58	5261	300	SF5000-20/3250	5000	6300	YWT-3000
	50.3	14.09	6632	375	SF6300-16/2860	6300	6300	YWT-3000
	59	15.82	8378	428.6	SF8000-14/2860	8000	6300	YWT-3800
	67.6	17.17	10418	428.6	SF10-14/2860	10000	6300	YWT-5000

Hydro turbine					Generator			Speed governor	Type of Valve
Type	Design Head(m)	Design Flow(m 3 /s)	Power (Kw)	Rated Speed (r/min)	Type	Rated Power(Kw)	Rated Voltage(v)	Speed governor	Type of Valve
HL240-WJ-50	21.5	1.29	222	750	SFW200-8/740	200	400	SDT-300/ YWT-300	Z941H-6DN700
	25.6	1.39	287		SFW250-8/850	250	400
	29.5	1.61	365		SFW320-8/850	320	400
	33.5	1.58	441	1000	SFW400-8/990	400	400
	38.5	1.74	558	1000	SFW500-6/990	500	400
HL240-WJ-60	23.5	1.94	361	600	SFW320-10/990	320	400	SDT-300/ YWT-300	Z941H-6DN900
	26.5	2.08	441		SFW400-10/990	400	400
	30.5	2.27	550		SFW500-10/990	500	400
HL240-WJ-71	24.5	2.71	537	500	SFW500-12/1180	500	400	YWT-600	Z941H-6DN1000
	285	2.93	680	500	SFW630-12/1430	630	400
	32.5	3.17	852	600	SFW800-10/1180	800	400
	36.5	3.55	1087		SFW1000-10/1430	1000	400
	42.5	3.75	1344		SFW1250-10/1430	1250	400
HL240-WJ-84	23.0	3.77	696	428.6	SFW630-14/1730	630	400	YWT-600	PDF40-WY-120
	26.5	4.12	884	428.6	SFW800-14/1730	800	400	YWT-600
	30.5	4.41	1090	500	SFW1000-12/1730	1000	400
	34.5	4.77	1368		SFW1250-12/1730	1250	400	YWT-1000
	39.5	5.22	1720		SFW1600-12/1730	1600	400	YWT-1000
HLF13-WJ-60	21	2.10	352	600	SFW320-10/990	320	400	SDT-300/ YWT-300	Z941H-6DN1000
	24.3	2.33	440	600	SFW400-10/990	400	400
	28.4	2.54	560	750	SFW500-8/990	500	400
HLF13-WJ-60A	32	2.68	690	750	SFW630-8/1180	630	400	YWT-600 YWT-1000
HLF13-WJ-60A	37.2	2.9	870	750	SFW800-8/1180	800	400	YWT-600 YWT-1000
HLF13-WJ-71	25.2	3.31	690	600	SFW630-10/1180	630	400	YWT-600	PDF40-WY-120
	29.2	3.67	890		SFW800-10/1180	800	400	YWT-600
	33.8	3.89	1090		SFW1000-10/1460	1000	400	YWT-1000
	38.2	4.18	1350	750	SFW1250-8/1430	1250	6300	YWT-1000
HLF13-WJ-84	22.4	4.53	890	500	SFW800-12/1430	800	400	YWT-600 YWT-1000	PDF40-WY-150

Hydro turbine					Generator			Speed governor	Type of Valve
Type	Design Head(m)	Design Flow(m 3 /s)	Power (Kw)	Rated Speed (r/min)	Type	Rated Power(Kw)	Rated Voltage(v)	Speed governor	Type of Valve
HLA153-WJ-50	27	1.29	275	750	SFW250-8/850	250	400	SDT-300/ YWT-300	Z945T-10DN600
	31	1.42	356		SFW320-8/850	320	400
	37	1.54	435		SFW400-8/990	400	400
	42	1.64	538	1000	SFW500-6/990	500	400
HLA153-WJ-50A	48	1.78	680	1000	SFW630-6/990	630	400	SDT-300/ YWT-300	Z945T-10DN600
HLA153-WJ-50A	56	1.93	863	1000	SFW800-6/1180	800	400	SDT-300/ YWT-300	Z945T-10DN600
HLA153-WJ-60	33	2.13	538	750	SFW500-8/990	500	400	SDT-300	Z945T-10DN800
	41	2.27	678		SFW630-8/1180	630	400	SDT-300
	44	2.43	870		SFW800-8/1180	800	400	YWT-300 YWT-600
	53	2.55	1075		SFW1000-8/1180	1000	400	YWT-300 YWT-600
HLA153-WJ-60A	61	2.72	1344	1000	SFW1250-6/1180	1250	6300	YWT-300 /YWT-600	Z945T-10DN1000
	70	2.99	1720		SFW1600-6/1430	1600	6300
	79	3.36	2128		SFW2000-6-1430	2000	6300
HLA153-WJ-71	36	3.0	860	600	SFW800-10/1180	800	400	YWT-600	PDF80-10 WY-1000
	41	3.32	1075	600	SFW1000-10/1430	1000	400	YWT-600
	56	3.72	1720	750	SFW1600-8/1430	1600	6300	YWT-1000
	64	4.13	2150	750	SFW2000-8/1730	2000	6300
	75	4.26	2660	1000	SFW2500-6/1430	2500	6300
HLA153-WJ-84	34	3.95	1075	500	SFW1000-12/1430	1000	6300	YWT-600	PDF80- WY-120
	38	4.43	1344	500	SFW1250-12/1730	1250	6300	YWT-600
	45	4.72	1720	600	SFW1600-10/1730	1600	6300	YWT-1000
	53	4.9	2150	600	SFW2000-10/1730	2000	6300
	60	5.56	2688	750	SFW2500-8/1730	2500	6300
	69	6.01	3444		SFW3200-8/1730	3200	6300	YWT-1800
	79	6.52	4301		SFW4000-8/1730	4000	6300	YWT-1800
HLA153-WJ-100	33	5.84	1720	428.6	SF1600-14/2150	1600	6300	YWT-1000	PDF85- WY-150
	41	6.41	2150	428.6	SF2000-14/2150	2000	6300	YWT-1000
	47	6.88	2688	500	SF2500-12/2150	2500	6300	YWT-1800
	55	7.5	3441	500	SF3200-12/2600	3200	6300
	63	8.12	4301	600	SF4000-10/2150	4000	6300
	73	8.65	5376		SF5000-10/2150	5000	6300	YWT-3000
	85	9.52	6774		SF6300-10/2600	6300	6300	YWT-3000
HLA153-WJ-120	33	8.21	2150	375	SF2000-16/2600	2000	6300	YWT-1800	PDF80- WY-175
	38	8.61	2688		SF2500-16/2600	2500	6300
	44	9.46	3441		SF3200-16/2600	3200	6300
	52	9.99	4301	428.6	SF4000-14/2600	4000	6300
	59	10.7	5376	428.6	SF5000-14/2600	5000	6300	YWT-3000
	68	11.61	6774	500	SF6300-12/2600	6300	6300
	79	12.58	8333	500	SF8000-12/2600	8000	6300
HLA153-WJ-140	23.3	9.79	2140	250	SF2000-24/2600	2000	6300	YWT-1800	PDF80- WY-200
	30.1	10.63	2661	300	SF2500-20/2600	2500	6300	YWT-3000
	35.7	11.52	3385	300	SF3200-20/3250	3200	6300	YWT-3000
	41.4	12.35	4233	300	SF4000-20/3250	4000	6300	YWT-3000
	47.2	13.35	5268	375	SF5000-16/2860	5000	6300	YWT-3000
	54.4	14.33	6633	375	SF6300-16/2860	6300	6300	YWT-5000
	63.2	15.56	8380	428.6	SF80000-14/2860	8000	6300	YWT-5000
	72.3	16.73	10418	428.6	SF10-14/2860	10000	6300	YWT-5000

Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.

Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.

In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.

Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
