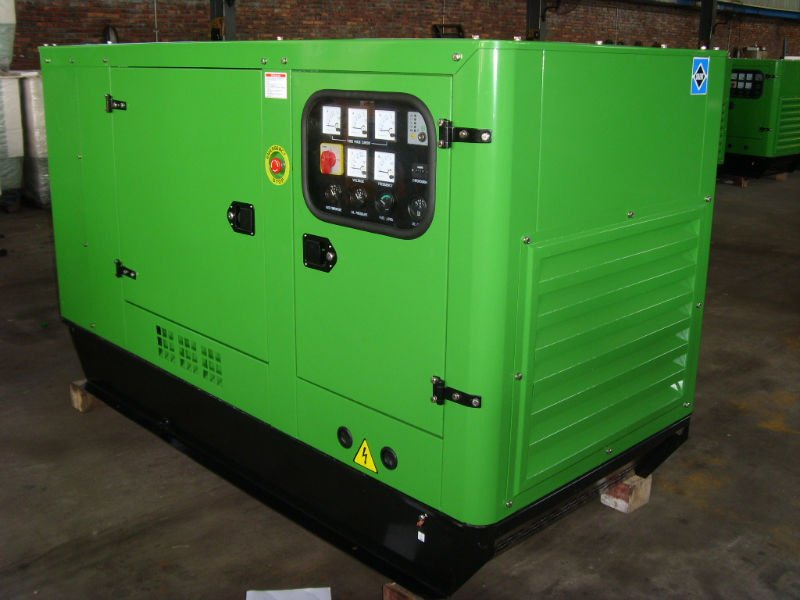

Prod Model: |
ADP50L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Type: |
AC Three Phase |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Product Description
Composed of LOVOL diesel engine and Stamford or Leroy somer alternator
Oil and fuel filter fitted, water separator
Lube-oil drain valve fitted
Electric Starter Charge motor 24 VD. C
Water-cooled
8-hours operation base tank
Auto start
Optional soundproof and weatherproof canopy
3 pole MCCB Delixi breaker
Operation & Maintenance manual
Special Integrated Steel Base tank and sprayed overall in gloss enamel paint
Voltage Regulation:
Voltage regulation maintanined within ± 0.5%
Between 0.8 and 1.0 lagging and unity
From no load to full load
At speed droop variation upto 4.5%
Frequency Adjustable Ratio:
Change load from 0-100%, within 1.0%( electric speed regulator), within 4.5%( mechanical speed regulator)
Frequency Undulation:
Load from 0-100%, frequency undulation within 0.25%
No load wire volts max undulation ration\ within 1.8% Three Phrase balanced load in the order of 5%
Effect factor of Telecom
TIF better than 50
THF to IEC60034 Part 40 better than 2%
Generating Sets Optional Features
Low fuel level alarm shutdown
Automatic Fuel Filling System Δ Engine oil feeding and drain pump Auto Transfter Switch( ATS)
Parallel control panels
Circuit Breaker MCCB & ACB
Remote Control Panel
Weatherproof/soundproof Canopy
Trailer type Gensets
Quality Standards
ISO9001: 2000, ISO14000, ISO3046
ISO8528 BS4999
BS5514, AS1359, ICE34
CE Compliance
Gensets Dimensions & Weight
Open type: LxWxH (mm) Net Weight Kgs
1900X750X1540, 1040KGS
Open type: LxWxH (mm) Net Weight Kgs
2650X1000X1650, 1250KGS
POWER RATING PRIME STANDBY |
POWER |
kVA |
63 |
70 |
kW |
50 |
55 |
Rated Speed |
r. p. m |
1500 |
Standard Voltage |
V |
400 |
Available Voltages |
V |
400/230 - 230/132 - 230 V |
Rated at power factor |
Cos Phi |
0.8 |
ENGINE PRP STANDBY |
Rated Output |
kW |
65.7 |
72.3 |
Manufacturer |
|
LOVOL |
Model |
|
1004TG |
No. of Cylindirs and Build |
|
4 Cycle; In-line; 4 Cylinder Diesel |
Aspiration and Cooling |
|
Turbocharged |
Bore/Stroke |
mm |
100X127 |
Compress the ratio |
|
17.5: 1 |
Cooling system |
|
Water-cooled |
Engine Speed/Frequency |
rpm/Hz |
1500/50HZ |
Coolant Capacity |
L |
20.6 |
Starting System |
|
Electric 24 volt DC |
Displacement |
L |
3.99 |
Lubricant system Capacity |
L |
8.5 |
Battery Volatge / Capacity |
|
24VDC |
Governing Type |
Type |
Mechanical |
Air Filter |
Type |
Dry |
Fuel Consumption |
Load |
100% |
75% |
50% |
25% |
L/h |
13.5 |
|
|
|
ALTERNATOR BRAND LEROY SOMER STAMFORD |
Model |
|
LSA43.2L65 |
UCI224F |
Exciter System |
|
Self-excited, brushless |
Poles |
Num |
4 |
Cooling Fan |
|
Cast alloy aluminum |
Bearing |
|
Single, double shielded |
Windings |
|
100% copper |
Connection Type |
|
Reconnectable |
Insulation Type |
Class |
Class H |
Pitch |
|
2/3 |
Amortisseur Winding |
|
Full |
Voltage Regulator |
|
A. V. R. (Electronic) |
Steady Voltage Precision |
|
± 1% |
Underspeed Protection |
|
Standard |
Overexcitation Protection |
|
IP23 |
TIF (1960 Weightings) |
|
< 50 |
