| Prod Model: |
FDV-2KW |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Rated Power: |
2kw |
| Material Of Blade/ Blade Length: |
FRP Complex Resin/ 2.6m |
| Numbers Of Blade: |
5 PCS |
| Diameter Of Wind Rotor: |
2m |
| Number Of Blade: |
Multiple-Blade |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Lift Force |
| Phase: |
3 Phase |
Product Description

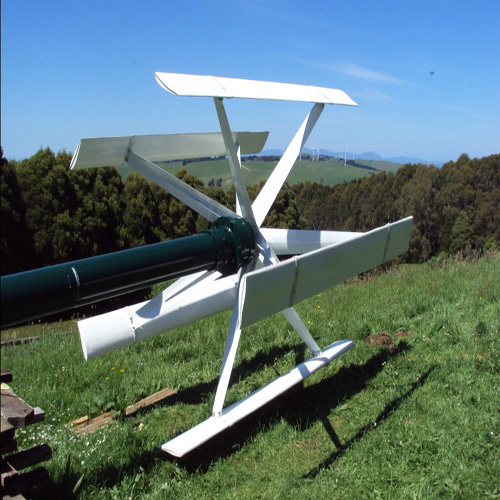

The FDV series vertical wind turbine
adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop.
Wind Turbine Models Optional For Your House
- JD-2kW and FDV- 1KW or 2KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc. pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
- JD-5kW and FDV-3KW or 5KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
For more details about our other products, pls feel free to visit our website www.chinawindsun.com or email us , we will try our best to assist you
Look forward to hearing from you again soon !
PS: if you want to know clearly and completely the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-2KW wind turbine complete installing steps and working conditions.
Numbers of Blade | 5 pcs |
| Material of Blade/ Blade Length | FRP Complex Resin/ 2.6m |
| Diameter of Wind Rotor | 2m |
| Start (out-in) wind speed | 3m/s |
| Wind Rotor height | 2.4m |
| Security wind speed | 45m/s |
| Rated wind speed | 9-11m/s |
| Wind energy ratio | 45% |
| Generator rated power | 2kw |
| Max output power | 2.4kw |
| Generator Type | Three phase Permanent magnet generator |
| Power Output from Generator | 0-380Vac |
| Charging voltage | 24/48/96/120Vdc for optional |
| Output voltage of Inverter | Single phase 220-240Vac/50HZ or 110-130Vac /60HZ |
| Stop method | Electron and dump load |
| Tower type | Galvanized Free Standing Tower and Hydraulic Tower for Optional |
| Tower height | 6m/8m/9m/12m/15m available |
| Charging control | Intelligent control full-automatically (with overcharge protection) |
| Inverter power supply | Pure sine wave |
| Battery Matching (off-grid system) | 4-10Pcs 12V-150AH Lead-acid or colloid batteries |
| Grid tied inverter matching | SMA windboy 3000A, or CTW-3.5K grid tied inverter |
| Time of charging (off-grid type) | About 8 hours |
Packing
Details | Parts' Name | Dimension | Gross Weight |
| Blades and connection pole | 2580× 800× 520mm | 220kgs |
| Tower and accessory | 6500× 155× 103mm | 48kgs |
| Wind Turbine & accessory | 1700× 600× 600mm | 40kgs |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
