| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chassic: |
Carbon Steel Sprayed With Plastic Box |
| Adjustable Ozone Output: |
20-100% |
| Timer: |
Can Be Set From Seconds to 99hrs |
| Gas Source: |
Built-in Oxygen Generator |
| Commodity Name: |
Ozonator in Swimming Pool Purification |
| Way Of Cooling: |
Water-Cooled |
| Ozone Capacity: |
10-60g/H |
| Guarrantee: |
12 Months |
| Ozone Tube: |
Enamel |
Product Description

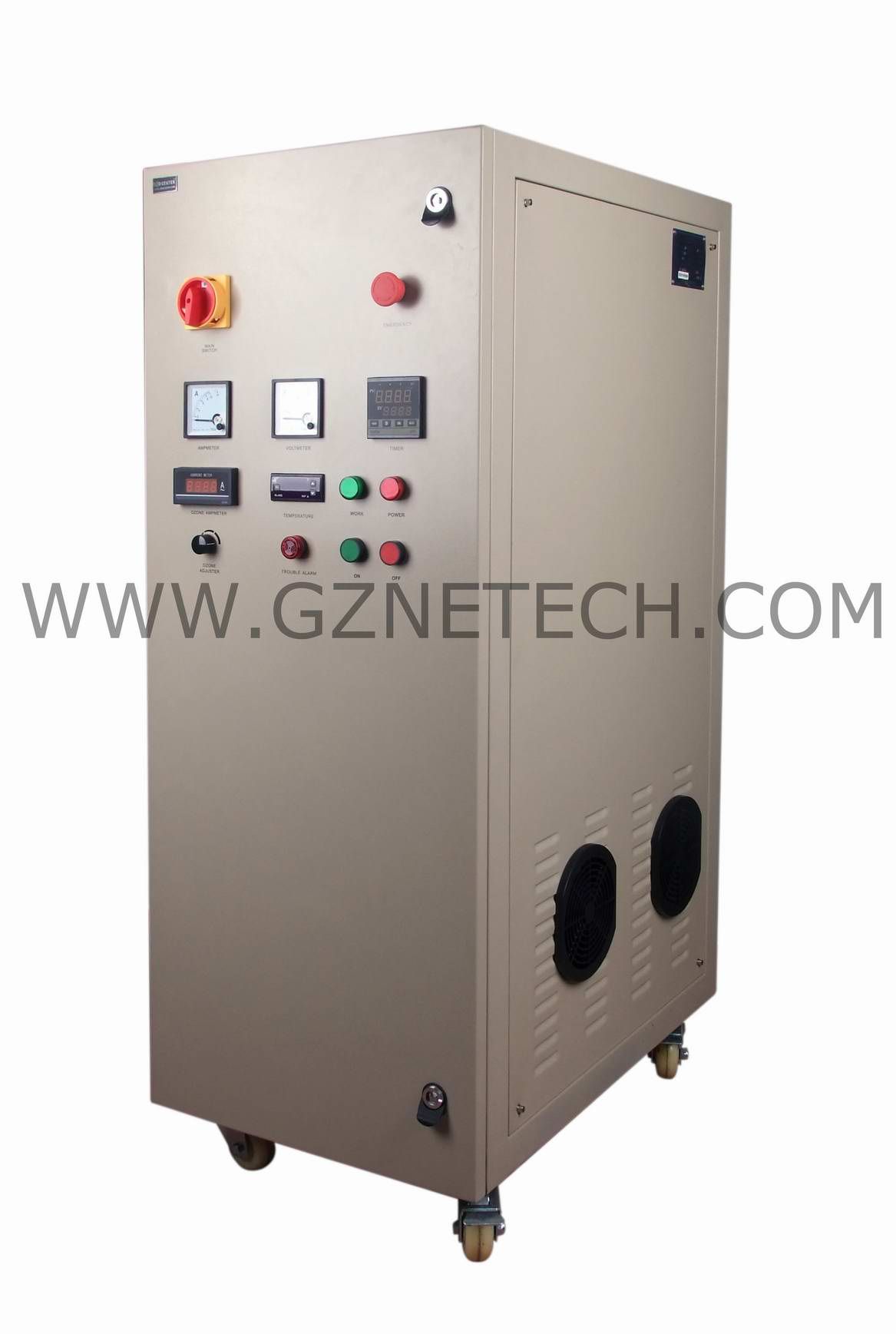

Ozone generation machine water sterilizer for aquarium
NT-Y
Features:
NT-Y Series with high ozone concentration, which has complete ozone parts inside machine, with built-in air compressor, refrigerant dryer and oxygen generator. Adjustable ozone output, it can meet with different requirements for different applications.
1. Complete machine oxygen source, with built-in oxygen concentrator with high concentration of ozone and ultra-low rate of ozone decay.
2. Use patent of product - enamel ozone tube with internal and external water cooling.
Both the internal and external electrodes are cooled by water with low temperature rise resulting in continuous work with high efficiency and stability, extreme low rate of ozone output decay and high ozone concentration thus saving air supply.
3. Use advanced high-frequency pulse modulation to ensure that ozone output varies with the change of demand, thus realizing accurate control.
4. Adjustable ozone output: 20~100%
5. Use anti-oxidation and corrosion-resistant materials (teflon, components made of stainless steel).
6. Chiller for cooling water, in order to reduce cost for user, we use dryer's chiller for cooling water.
7. Adjustable oxygen flow rate, which will change ozone output & concentration for meeting with different lines requirements.
8. Save air supply with low power consumption but high efficiency.
9. No breakdown with easy operation and maintenance.
Controls:
Ampmeter Timer Oxygen flow meter
Working light Power light Alarm
Ozone adjuster Emergency stop
Parts of NT-Y machine:
Enamel Ozone Tube Adjustable Electric Board Oxygen Concentrator Air Compressor Chiller for Cooling Water Refrigerant Dryer
|
Item |
Unit |
Model |
|
NT-Y10G |
NT-Y20G |
NT-Y30G |
NT-Y40G |
NT-Y50G |
|
Oxygen flow rate |
LPM |
1~3 |
2~6 |
3~10 |
5~15 |
8~18 |
|
Ozone concentration |
Mg/L |
88~58 |
88.6~57 |
87.5~56.8 |
90~56 |
90~60 |
|
Ozone output |
G/Hr |
5~10 |
11~21 |
16~34 |
27~50 |
43~64 |
|
Power |
Kw |
≤ 0.96 |
≤ 0.98 |
≤ 1.43 |
≤ 1.62 |
≤ 1.85 |
|
Cooling water flow rate |
LPM |
30 |
48 |
|
Ozone adjustable range |
% |
20~100 |
|
Fitting diameter |
mm |
4× 8 |
|
Dew point |
C |
-45 |
|
Fuse of power supply |
A |
5 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
820× 538× 1360 |
Guangzhou Netech Environmental Technology Co., Ltd. is a medium enterprise specializing in the multi-operation of the R&D and production of various Environmental Products & Equipment. Our main businesses include ozone generator units and parts, water treatment systems from clarifiers to membrane system packages, waste water treatment, environmental protection and equipment accessories & parts. We have about 30 employees with engaged in R&D and Engineering.
With our 15 years of experience in Water Treatment and Environment R&D and Engineering, we are able to solve all your solutions in Environmental Protection and Water Treatment.
