Ozone Generator/Ozonizer/Ozonator for Water Treatment in Fish Farming/Swimming Pool

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Style For Purifier:	Cabinet
Water Temperature:	Cold, Warm & Hot
Ozone Output Capacity:	10-50g/H
Ozone Generation Type:	Corona Discharge
Gas Source:	Outside Air/Oxygen Source
Usage:	Water and Air Treatment
Feature:	Built-in Orp Meter for Testing The Ozonated Water
Box:	Carbon Steel Sprayed With Plastic Chassic
Commodity Name:	Ozone Disinfection Facility
Ozone Output Adjuster:	20-100%
Cooling Method:	Water Cooling

Product Description

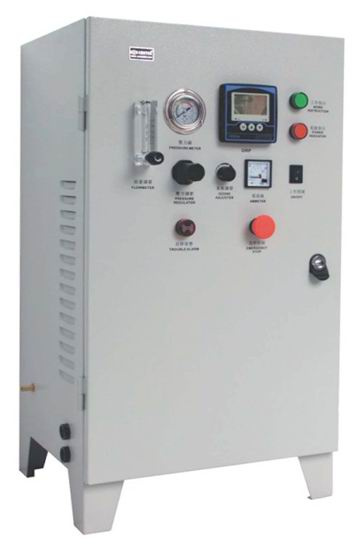

Ozone generator/ozonizer/ozonator for water treatment in fish farming/swimming pool
Features:
Carbon steel sprayed with plastic of machine housing. Most suitable used for water treatment, eg: Sewage water treatment, drinking water, industrial water treatment etc.

Installed with water cooling enamel ozone tube
Water cooled for internal & external electrodes, effective prevent high temperature rising during ozone tube's operating, for ensuring high ozone concentration output.

Adjustable ozone output
Use high-frequency & intelligent power supply inverse system, ozone output can be adjusted on for different usage.

Can be feed with outside oxygen/air feed.

High ozone concentration is more than 90Mg/L if connect with outside oxygen tank.

Easy to maintain and assembly

ORP meter which shows the pH of treated water, easy to get the treated result after use ozone machine.

Controls:
Oxygen flow meter Voltmeter Ampmeter On/Off
Working light Power light Ozone Adjuster Alarm Pressure regulator Emergency Water flow switch ORP

Remarks:
An ORP meter measures very small voltages generated with a probe placed in ozonated water. The electrode is made of platinum or gold, which reversibly looses its electrons to the oxidizer. A voltage is generated which is compared to a silver (reference) electrode in a silver salt solution, similar to a pH probe. The more oxidizer available, the greater the voltage difference between the solutions.

ORP Disadvantages: ORP cannot be used as a direct light of dissolved ozone residual, except in very clean water applications.
ORP Advantages: ORP is a convenient measure of ozone's ability to perform a chemical task. ORP is valid over a wide pH range, and ORP probes are rugged enough to be place into processes for in-line measurement. The probes can withstand process pressures in excess of 30 PSI.
