Prod Model: |
AC400-750KVA-RL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
AC440V |
Frequency: |
50Hz/60Hz |
Rated Capacity: |
1050kVA |
Apprent Power: |
750kVA |
Resistive Load: |
600kw |
Inductive Load: |
450kvar |
Insulation Grade: |
F Class |
Product Description

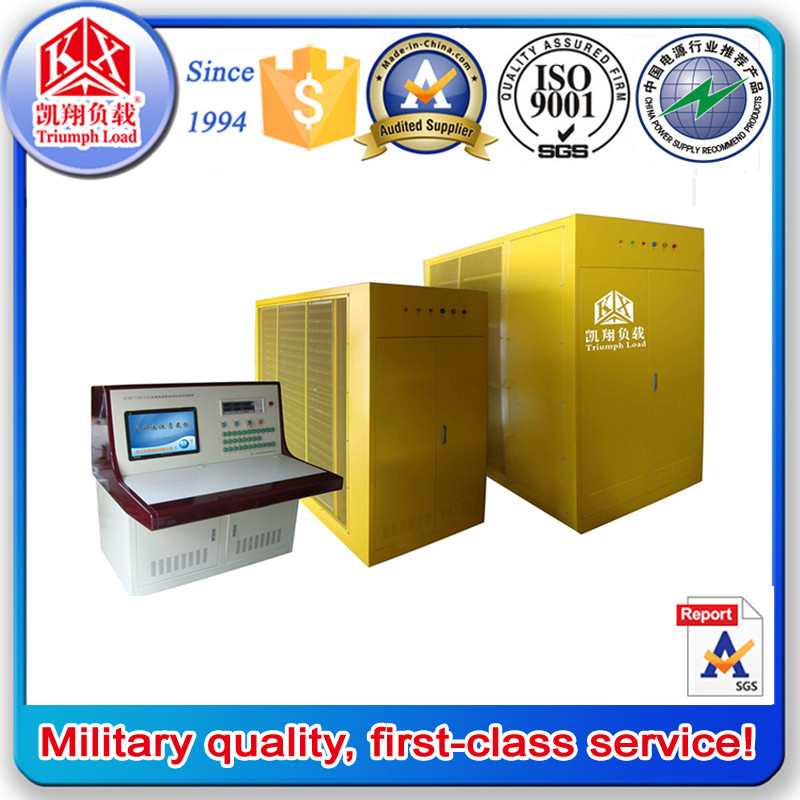

Resistive and Inductive Load Bank for Generator Testing
1.Product Introduction
Resistive and Inductive Load Bank for Generator Testing
It is composed of outdoor resistor-inductance AC load bank,data collection
system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power
and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel
operation test etc.
2.AC400-750KVA Resistive and Inductive Load Bank for Generator Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC400-750KVA Resistive and Inductive Load Bank for Generator Testing Technical Specifications
Technical parameter |
AC400-750KVA-RL |
Rated voltage /Frequency | Three-phase four-wire 400V,50Hz |
Rated Capacity | 1050KVA |
Load Distribution | 2 load Resistive load:600kW,Inductive load:450Kvar |
Stepping Value | Resistive load: 0.5KW Inductive load: 1Kvar |
Resistor divider file | 0.5,1,2,2,5,10,10,20,50,50,50,50,50,50,50,50,50,50,50KW 19steps |
Reactance file | 1,2,2,5,10,10,20,50,50,100,200Kvar 11steps |
Power factor | 0.8-1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC three phase connection 380V/50Hz |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
