Product Description
One programmable nightlight function
PWM regulation (series type)
Integrated temperature compensation
Three-state charging method
SOC and voltage controlled LVD
Solid-state circuit and load protection
Reverse polarity protection
Fully electronically protected

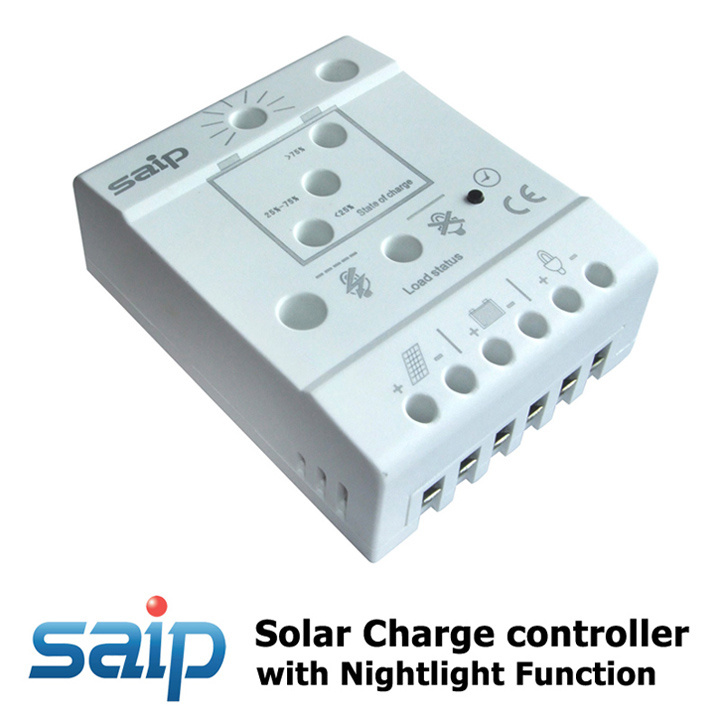

The SMLNL series is a sophisticated solar charge controller family for low cost applications.
The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions. The SMLNL series comes with two nightlight function mode. One of them is programmable that switch on the load output for a adjustable number of hours from dusk.
The nightlight function is overridden by a battery deep discharge protection to avoid excessive dicharge and damage of the battery.
The temperature-compensated three-state PWM charging method (boost-equalize-float) is now ajustable to sealed and vented lead-acid batteries.
The low voltage disconnect function can be controlled either by SOC or by voltage.
The battery status, charging status and load status are clearly indicated by 5 LEDs.
|
Model |
SMLNL05 |
SMLNL08 |
SMLNL10 |
SMLNL15 |
SMLNL20 |
|
Nominal voltage: |
12/24V automatic recognition |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Equalization voltage |
13.7/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V controlled by state of charge
11.0/22.0V controlled by voltage |
|
Load reconnect voltage |
12.8/25.6V |
|
Temperature compensation |
-4mV/cell*K |
|
Self consumption |
<4mA |
|
Max. wire size |
16mm ²(AWG#6) |
|
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
|
Weight |
220g |
|
Temperature range |
-20to+50°C |
|
Type of protection |
IP22 |
