Frequency:
50Hz, 60Hz for Option
Rated Voltage:
400/230V, Various Voltage Available
Controller:
Smartgen, Deepsea
Function Option:
ATS, Amf, Parallel System
Generator Type:

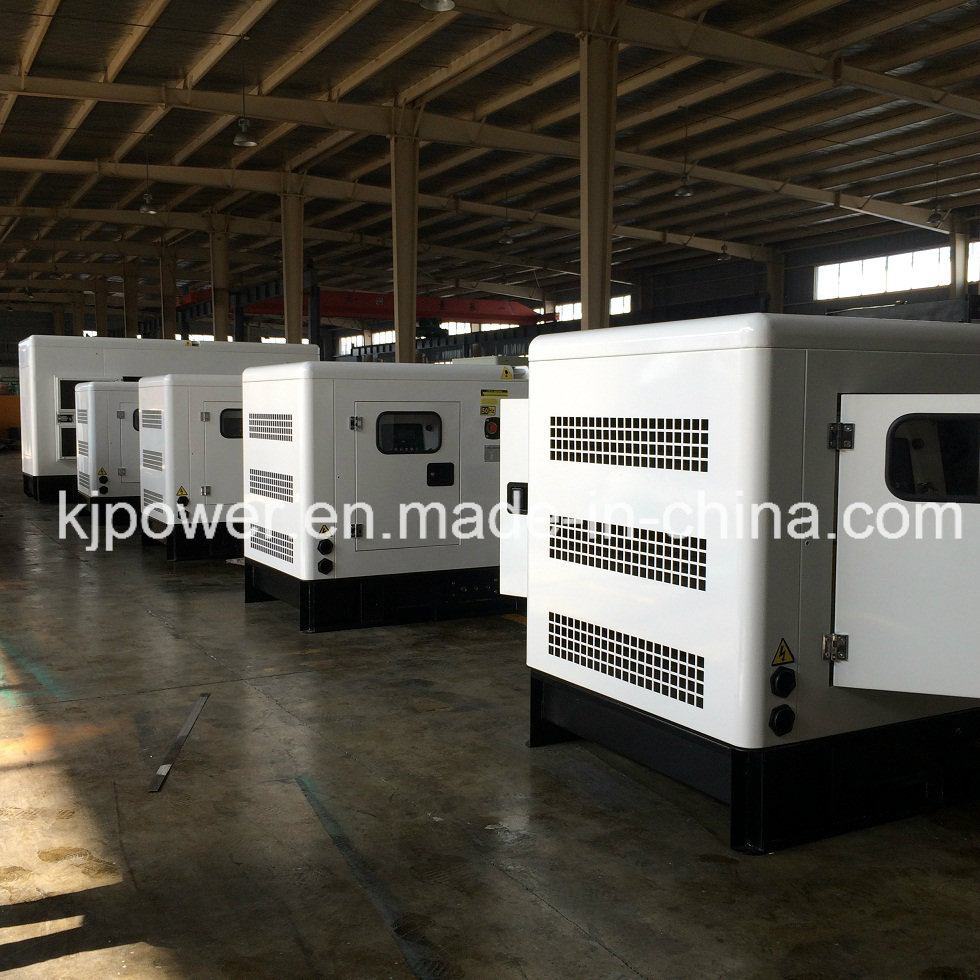

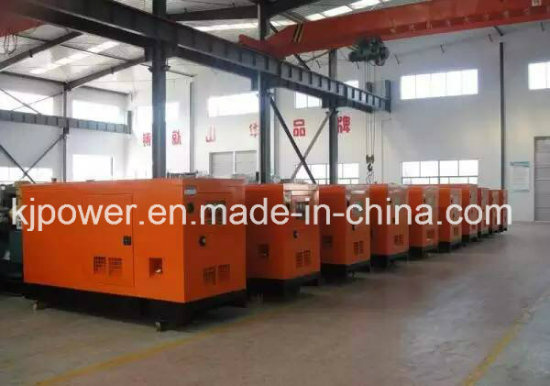

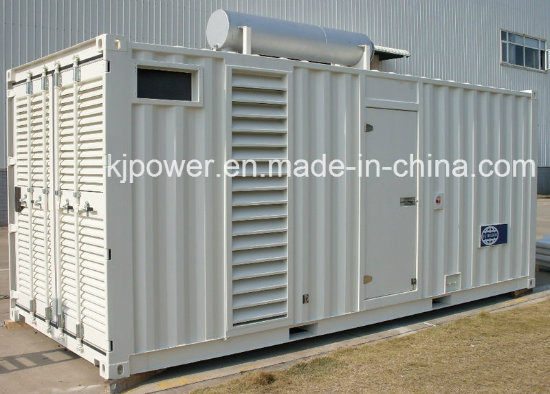

Open Type/Silent Type /Container Type/Trailer Type
Quality Standard:
ISO9001.CE.Soncap.Saso
Alternator:
Kaijie, Marathon, Stamford, Leroy Somer
Production Time:
15-20 Working Days
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Product Description- Perkins power diesel generator with CE ISO
1.Power by Perkins Engine 2.With Stamford / Leroy Somer / Marathon Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with ISO9001/CE 8. After-sale Services
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panelis a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine *Heavy duty diesel engine *Four stroke, water cooled *12V and 24V stater and charge alternator *Cooling radiator and fan *Maintenance free battery including ract and cable *Flexible fuel connection hoses and manual oil sump drain valve *Exhaust silencer Alternator *Brushless, single bearing, flexible disc *Insulation class: H *Protection class: IP23 *Self-exciting and Self-regulation Canopy *All canopy designed with modular principles *All metal canopy parts painted by electrostatic polyester power paint *Soundproof design ensure that the noise level be controlled in small scope *Convenient to lift and move *Easy to maintenance and operate
Base Frame *Base frame including position for forklift and crane *Integral fuel tank *Daily fuel tank continuously supply for 8-24 hours *Fuel tank easy to maintain and clean *Anti-vibration pads are flexed between engine and alternator.
Control System *Control, monitor and protect the Generator Set including: *High water temperature *Low oil pressure *Over and under speed *Over current *Under/Over generator voltage *Start and stop failure *Low and high battery voltage *Charge fail *Emergency stop
Genset Model
Prime Power
Standby Power
Engine Model
Cylinder
Bore×Stroke
Aspiration
Disp.
Alternator
Dimension
Weight
KVA/KW
KVA/KW
mm
L
KaiJie
Stamford
L×W×H(mm)
kg
KJ-P11
10 / 8
11 / 8.8
403D-11G
3L
77×81
Natural
1.131
K-TFW8
PI044E
1200×550×1000
500
KJ-P14
13 / 10.4
15 / 12
403D-15G
3L
84×90
1.496
K-TFW11
PI044G
1200×550×1000
500
KJ-P22
20 / 16
22 / 17.6
404D-22G
4L
84×100
2.216
K-TFW16
PI144D
1350×550×1100
650
KJ-P33
30 / 24
33 / 26
1103A-33G
3L
105×127
3.3
K-TFW24
PI144G
1700×650×1150
800
KJ-P50
45 / 36
50 / 40
1103A-33TG1
3L
105×127
Turbocharged
3.3
K-TFW36
UCI224D
1750×650×1150
860
KJ-P66
60 / 48
66 / 52.8
1103A-33TG2
3L
105×127
3.3
K-TFW50
UCI224E
1950×650×1100
950
KJ-P72
65 / 52
75 / 58
1104A-44TG1
4L
105×127
4.4
K-TFW55
UCI274D
2050×650×1150
1000
KJ-P88
80 / 64
88 / 70
1104A-44TG2
4L
105×127
4.4
K-TFW64
UCI274E
2050×650×1150
1000
KJ-P100
90 / 72
100 / 80
1006TAG1A
6L
100×127
Turbocharged& air to air cooled
5.99
K-TFW75
UCI274F
2450×700×1300
1100
KJ-P110
100 / 80
110 / 88
1104C-44TAG2
4L
105×127
4.4
K-TFW80
UCI274G
2050×650×1150
1000
KJ-P150
135 / 108
150 / 120
1006TAG
6L
100×127
5.99
K-TFW110
UCI274H
2630×730×1300
1200
KJ-P165
150 / 120
165 / 132
1006TAG2
6L
100×127
5.99
K-TFW120
UCD274J
2630×730×1300
1300
KJ-P200
180 / 144
200 / 160
1106C-E66TAG4
6L
105×127
6.6
K-TFW150
UCD274K
2800×800×1400
1500
KJ-P220
200 / 160
225 / 180
1306C-E87TAG3
6L
116.6×135.9
8.7
K-TFW160
UCI274H
2815×875×1570
1950
KJ-P250
225 / 180
250 / 200
1306C-E87TAG4
6L
116.6×135.9
8.7
K-TFW180
UCD274J
2815×875×1570
1950
KJ-P275
250 / 200
275 / 220
1306C-E87TAG6
6L
116.6×135.9
8.7
K-TFW200
UCD274K
2815×875×1570
2350
KJ-P375
350 / 280
400 / 320
2206A-E13TAG2
6L
130×157
12.5
K-TFW280
HCI444E
3700×1200×2000
3100
KJ-P438
400 / 320
450 / 360
2206A-E13TAG3
6L
130×157
12.5
K-TFW320
HCI444F
3700×1200×2000
3100
KJ-P500
450 / 360
500 / 400
2506A-E15TAG1
6L
137×171
15.2
K-TFW360
HCI544C
3800×1150×2100
3400
KJ-P513
500 / 400
550 / 440
2506A-E15TAG2
6L
137×171
15.2
K-TFW400
HCI544C
3800×1150×2100
3700
KJ-P660
600 / 480
660 / 528
2806A-E18TAG1A
6L
145×183
18.13
K-TFW480
HCI544E
3750×1530×2110
4300
KJ-P713
650 / 520
700 / 560
2806A-E18TAG2
6L
145×183
18.13
K-TFW520
HCI544F
3810×1530×2100
4500
KJ-P875
750 / 600
825 / 660
4006-23TAG2A
6L
160×190
23
K-TFW600
LVI634B
4470×1700×2260
4970
KJ-P900
800 / 640
880 / 704
4006-23TAG3A
6L
160×190
23
K-TFW640
LVI634C
4470×1700×2260
5200
KJ-P1100
1000 / 800
1100 / 880
4008TAG2A
8L
160×190
30.6
K-TFW800
LVI634E
5450×2100×2400
8000
KJ-P1250
1250 / 1000
1375 / 1100
4012-46TWG2A
12V
160×190
45.842
K-TFW1000
LVI634G
5470×2000×2500
8900
KJ-P1350
1350 / 1080
1500 / 1200
4012-46TAG1A
12V
160×190
45.842
K-TFW1080
PI734B
5470×2000×2500
9000
KJ-P1500
1500 / 1200
1650 / 1320
4012-46TAG2A
12V
160×190
45.842
K-TFW1200
PI734C
5725×2200×2560
9850
KJ-P1750
1710 / 1368
1875 / 1500
4012-46TAG3A
12V
160×190
45.842
K-TFW1400
PI734D
5650×2350×3050
12000
KJ P1875
1850 / 1480
2000 / 1600
4016TAG1A
16V
160×190
61.123
K-TFW1500
PI734E
5200×2100×2500
15000
KJ-P2000
2000 / 1600
2250 / 1800
4016TAG2A
16V
160×190
61.123
K-TFW1600
PI734F
5500×2300×2500
15500
KJ-P2500
2250 / 1800
2500 / 2000
4016-61TRG3
16V
160×190
61.12
KTFW1800
PI734G
5970×2775×3310
16000
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
