South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Color:
as Customers Requirements
Brand:
Xby or OEM
Wire:
Copper or Aluminum
Cooling Method:
Fan Cooling
Power Range:
3~75kw
Product Description

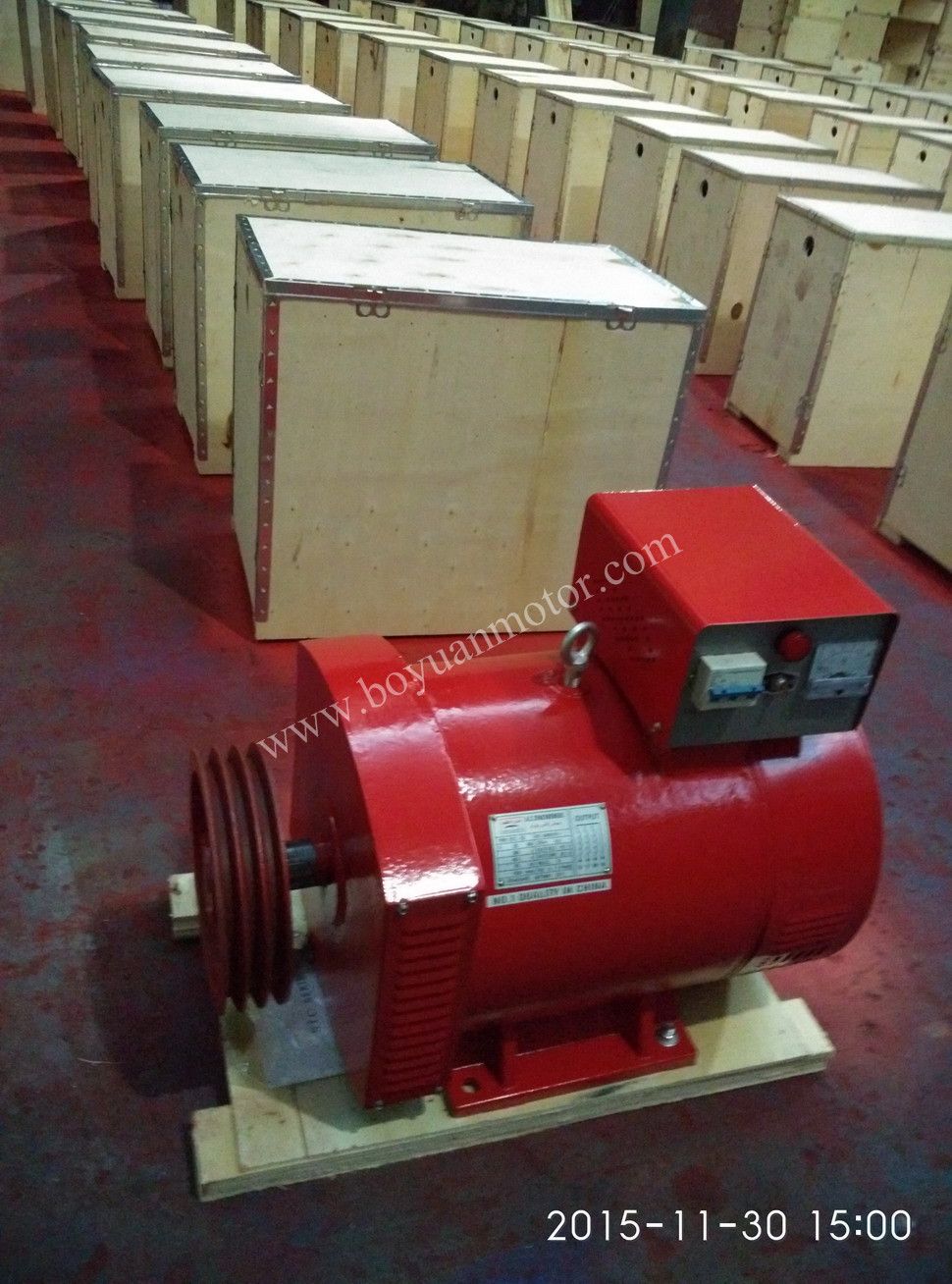

ST/STC Three phase A. C Electric Synchronous generator
1. 100% Copper wire /50% copper &50% aluminum /100% aluminum 2. OEM service offered 3. Competitive price, good qua
(1)STC generators diesel are to be used in town, the countryside, work sites, mountains and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case.
(2)The generators are of drip-proof with rotary field type and harmonic excitation system, making use of the star connection with neutral point.
(3)The rated line voltage is 400V; Phase voltage is 230V; Frequency is 50Hz; Power factor is 0.8(lag). We can provide the generator with 60Hz and the other voltage according to request.
(4)They can be coupled with a prime mover directly or through V-belt, rotating right or reverse continuously at the rated speed.
(5)Operating Conditions Cooling air temperature: -15oC~40oC Above sea level: Not exceed 1000m Relative air damping: Not exceed 90%
Technical Data:
Model
Output power(KW)
Current(A)
Voltage(V)
Power factor
Pole number
Speed (r/min)
Steady Volt Regulation (%)
Series connection
Parallel connection
Series connection
Parallel connection
ST-2
2
8.7
17.4
230
115
1.0
4
1500
±5
ST-3
3
13
26
ST-5
5
21.8
43.5
ST-7.5
7.5
32.6
65.2
ST-10
10
43.7
87
ST-12
12
52.2
104.4
ST-15
15
65.2
130.4
ST-20
20
87
174
ST-24
24
87
174
Model
Output power(KW)
Rated capacity(KVA)
Rated current(A)
Pole number
Speed (r/min)
STC-3
3
3.8
5.4
4
1500
STC-5
5
6.3
9
STC-7.5
7.5
9.4
13.5
STC-10
10
12.5
18.1
STC-12
12
15
21.7
STC-15
15
18.8
27.1
STC-20
20
25
36.1
STC-24
24
30
43.3
STC-30
30
37.5
54.1
STC-40
40
50
72.2
STC-50
50
62.5
90.2
STC-64
64
80
115.4
STC-75
75
93.7
135.3
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.

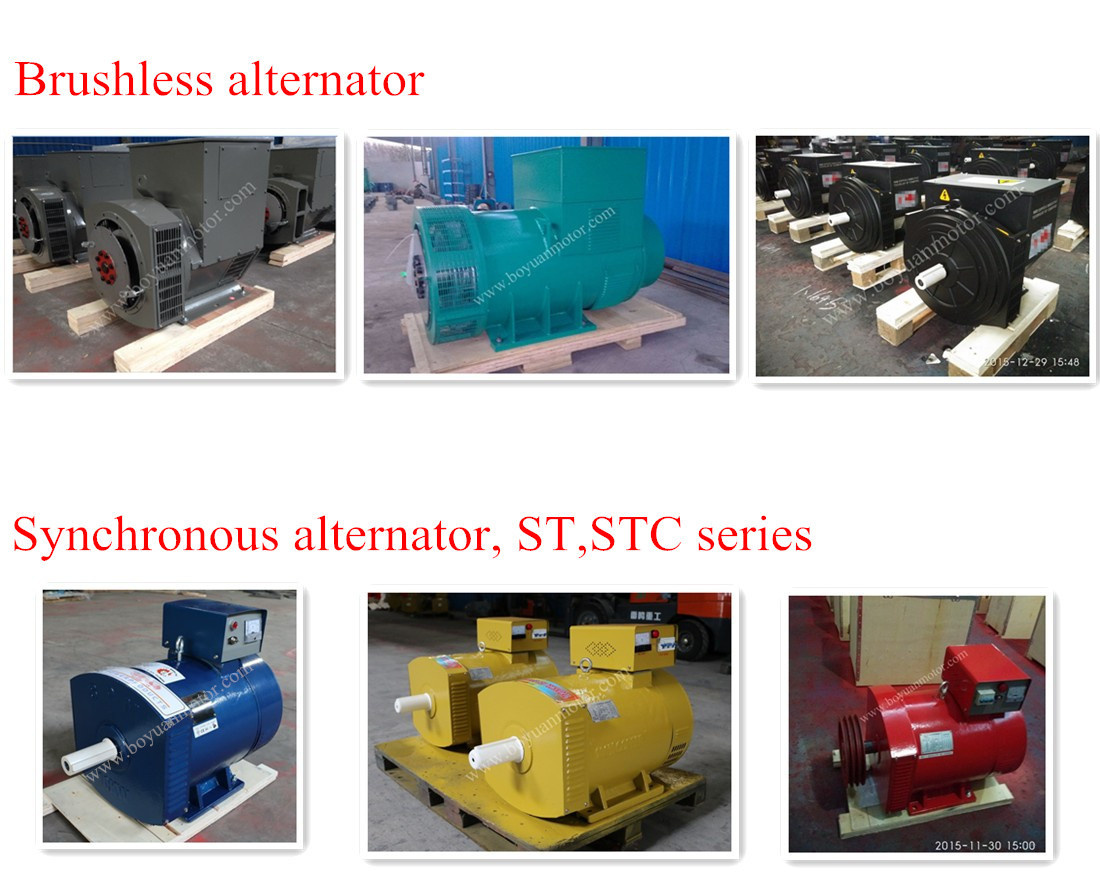

BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
