| Prod Model: |
LN1000GF |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Rated Power: |
1000kw |
| Standby Power: |
800kw |
| Prime Capacity: |
800kVA |
| Standby Capacity: |
1000kVA |
| Rated Voltage: |
400/230V |
| Frequency: |
50/60Hz |
| Brand Name: |
Lvneng |
| Model Number: |
Ln-500gf |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
wholesale power diesel generatorWelcome to the showroom of Shandong lvneng Power Equipment Co., Ltd! We are professional and dedicated system supplier of energy production by diesel and gas powered generator set for almost 10 years, we are basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas, biomass gas, coal gas, coal bed gas(CBM), associated gas and syngas.
Specifications
1, Supply 20-1000KW 2. Advanced Control Panel 3.Water-cooled diesel engine 4. Service OEM Offered 5. ISO9001-2008 1. Technical Specs and Technical Performance of Diesel Generator Set
Model Number |
LN700GF |
| Brand Name | LVNENG |
| Rated Power | 700 KW |
| Rated Speed | 1000 rpm |
| Rated Frequency | 50 Hz |
| Rated Voltage |
400/230V |
Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | H |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brushless |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time |
≤1 s |
2. Technical Specs of DIesel Engine

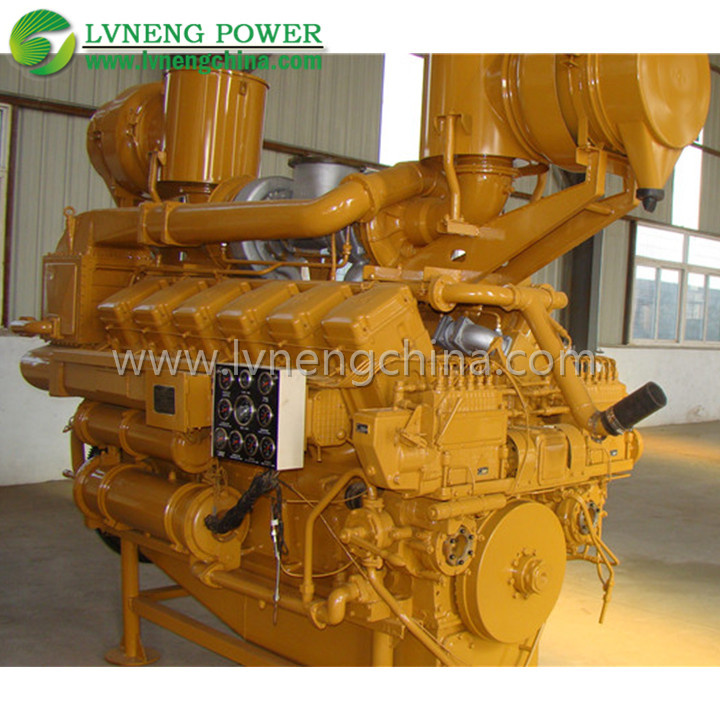

1000kw wholesale power diesel generatorSpecification of the Diesel Generator set
| Model No. | Engine number | Alternator style No. | Rated Power(KW) | Rated Voltage(KW) | Rated Speed | Rated Frequency(Hz) |
| LNDG20 | K4100 | 1FC5456-6TA42 | 20 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG30 | K4100ZD | 1FC5456-6TA42 | 30 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG50 | R4105ZD | 1FC5456-6TA42 | 50 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG60 | R4108AZD | 1FC5456-6TA42 | 60 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG75 | R6105AZD | 1FC5456-6TA42 | 75 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG80 | R6105AZLD | 1FC5456-6TA42 | 100 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG120 | R6105IZLD | 1FC5456-6TA42 | 120 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG150 | HX6113ZLD | 1FC5456-6TA42 | 150 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG200 | HX6126 | 1FC5456-6TA42 | 200 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG330 | 12V135AZD | 1FC5456-6TA42 | 330 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG363 | 12V135BZLD | 1FC5456-6TA42 | 363 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG418 | 12V135BZLD-2 | 1FC5456-6TA42 | 418 KW | 400/230 | 1500 rpm | 50/60 |
| LNDG540 | G6190ZLC2 | 1FC5456-6TA42 | 540 KW | 400/230 | 1500 rpm | 50/60 |
| LHDG882 | Z12V190B | 1FC5456-6TA42 | 882 KW | 400/230 | 1500 rpm | 50/60 |
| LnDG1000 | G12V190ZL1 | 1FC5456-6TA42 | 1000 KW | 400/230 | 1500 rpm | 50/60 |
3. Other Specification
Color | your choice |
| Certificates | ISO 9001:2008 |
| Warranty | 1 year or 1000 running hours |
| Type | Open |
| Control System | Automatic alarm system |

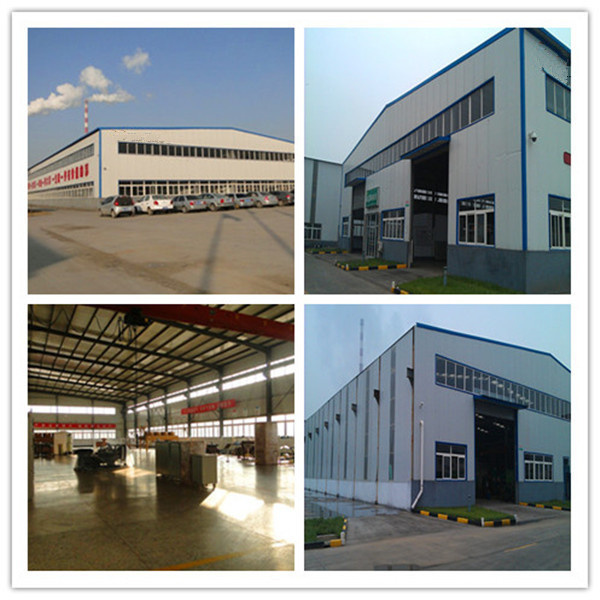

JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
