| Prod Model: |
YC6C865L-C20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start: |
Electric Start |
| Place Of Original: |
China |
| Warranty: |
18 Months |
| Certification: |
CCS |
Product Description
We supply original YUCHAI YC6C series Marine diesel engine from yuchai factory .such as YC6C980L-C20,YC6C820L-C20,YC6C700L-C20,YC6C960L-C20,YC6C925L-C20,YC6C865L-C20,YC6C820L-C20,YC6C730L-C20,YC6C670L-C20,YC6C620L-C20,YC6C650L-C20,YC6C530L-C20,YC6C480L-C20,YC6CL1200L-C20,YC6CL1135L-C20,YC6CL1035L-C20,

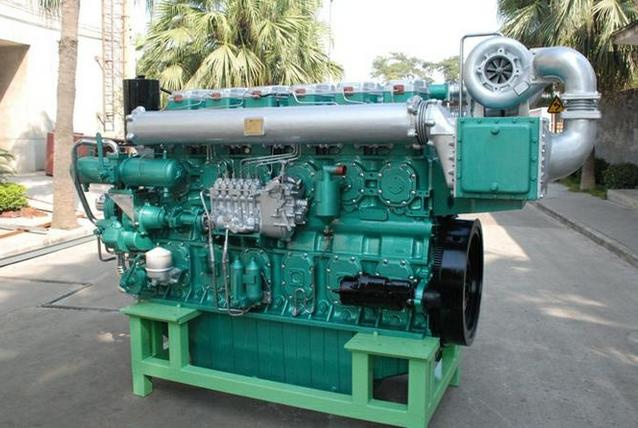

YUCHAI marine engine for ship, fishing-boat,boat ,generator auxiliary etc. from 43.5hp-2500hp. Yuchai YC6C960L-C20,YC6C925L-C20,YC6C865L-C20 marine diesel engine used for ship,generator.
with 12 month warranty.
Yuchai diesel engine use the yuchai technology in Germany and Japanese ship machine technology developed by products.
Welcome to inquiry!Techincal Specifications
| Model | YC6C980L-C20 | YC6C820L-C21 | YC6C700L-C20 | YC6C960L-C20 | YC6C925L-C20 | YC6C865L-C20 | YC6C820L-C20 | YC6C730L-C20 | YC6C670L-C20 | YC6C620L-C20 | YC6C650L-C20 | YC6C530L-C20 | YC6C480L-C20 | YC6CL1200L-C20 | YC6CL1135L-C20 | YC6CL1035L-C20 | YC6CL925L-C20 | YC6CL775L-C20 | YC6CL750L-C20 | YC6CD750L-C20 | YC6CD700L-C20 | YC6CD600L-C20 | YC6CD540L-C20 |
|---|
| Type | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke | Vertical, in-line, water-cooled, four stroke |
| Intake way | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled | Turbo charging& inter-cooled |
| No. of cylinders - Bore × Stroke(mm) | 6-200×210 | 6-200×210 | 6-200×210 | 6-200×210 | 6-200×290 | 6-200×290 | 6-180×210 |
| Displacement(L) | 39.58 | 39.58 | 39.58 | 39.58 | 54.6 | 54.6 | 32 |
| Compression ratio | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 14.5:1 | 13.5:1 |
| Continuous power/speed (kW(Ps)/r/min) | 720(980)/1500 | 600(820)/1500 | 515(700)/1000 | 706(960)/1350 | 680(925)/1350 | 636(865)/1350 | 603(820)/1200 | 536(730)/1200 | 492(670)/1200 | 455(620)/1200 | 478(650)/1000 | 390(530)/1000 | 352(480)/1000 | 882(1200)/1000 | 835(1135)/1000 | 760(1035)/1000 | 680(925)/900 | 570(775)/750 | 550(750)/720 | 551(750)/1350 | 515(700)/1350 | 441(600)/1200 | 396(540)/1000 |
| One-hour power/speed (kW(Ps)/r/min) | 792(1080)/1500 | 660(900)/1500 | 567(770)/1000 | 776.6(1060)/1393 | 748(1020)/1393 | 700(955)/1393 | 663(900)/1238 | 590.4(800)/1238 | 541.2(740)/1238 | 501(680)/1238 | 526(715)/1032 | 429(585)/1032 | 387.2(530)/1032 | 970.2(1320)/1032 | 918.5(1250)/1032 | 836(1140)/1032 | 748(1020)/929 | 627(855)/774 | 605(825)/743 | 606.1(825)/1393 | 566.5(770)/1393 | 485.1(660)/1239 | 435.6(735)/1032 |
| Min specific fuel consumption (g/ kW?h) | 195 | 195 | 195 | 195 | 195 | 195 | 195 |
| Specific oil consumption (g/kW?h) | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.8 |
| Engine oil capacity(L) | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L | 150-180L |
| Crankshaft rotation direction (see from power output end) | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise | Anticlockwise |
| Starting way | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) | Electrical (Gas start is optional) |
| Net weight(kg) | 4700kg | 4700kg | 4700kg | 4700kg | 5380kg | 5380kg | 4700kg |
| Overall dimensions (LxWxH) (mm) | 2760×1285×1940 | 2760×1285×1940 | 2760×1285×1940 | 2760×1285×1940 | 2870×1260×2350 | 2870×1260×2350 | 2760×1285×1940 |
| Certificate | ZC,CCS,IMO | 500kW | 450kW | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO | ZC,CCS,IMO |
If you need model infomation and best quotation for yuchai marine engine, please feel free to contact us.
