| Prod Model: |
PMG-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1kw |
| Generator: |
3 Phase AC Permanent Magnet Generator |
| Outer Frame Finish: |
Aluminium Surface |
| Magnet Material: |
NdFeB (Neodymium Iron Boron) |
| Starting Torque(Nm): |
<1.5 |
| Net Weight: |
16kg |

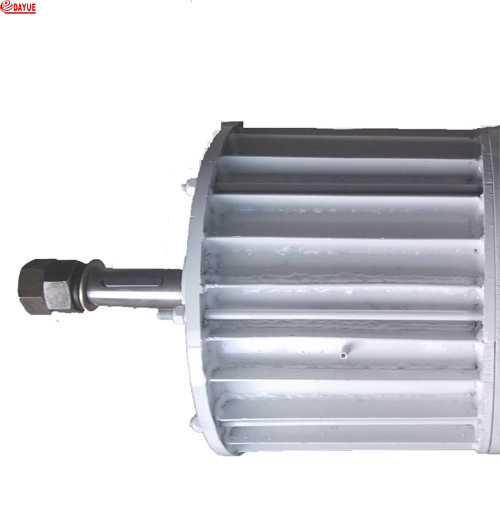

Product Description
Features:
1,Gearless, direct drive, low RPM generator
2,Small size and light weight: Its size and weight are 30% less than those of conventional generators.
3,Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
4,permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability
| Model number: | PMG-1000 |
| Rated Output Power(W) | 1000 |
| Rated outpout voltage (v) | 96v |
| Outer frame material | High standard Aluminium alloy with TF/T6 heat treatment
|
| Outer frame finish | Aluminium surface is anodised then power painted for anti-corrosion protection |
| Weight(Kgs) | 16 |
| Fasteners (nuts and bolts) | High standard Stainless Steel |
| Lamination stack | High specification cold-rolled Steel |
| Windings temperature rating | 180 degrees |
| Magnet material | NdFeB (Neodymium Iron Boron) |
| Magnets temperature rating | Rated at 150 degree Celsius |
| Generator | 3 Phase AC output |
| Safety | Capable of withstand short term shorting of the windings for braking effect at rated rotation speed. Class 1 electrical safety rated for prevention of electrical shocks. |
| Starting torque(NM) | <1.5 |
|

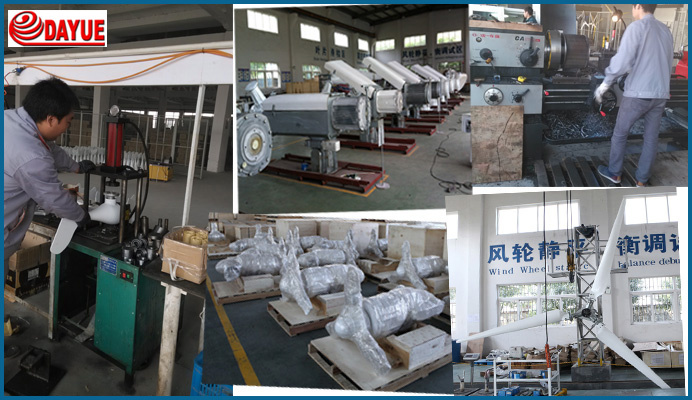

Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
