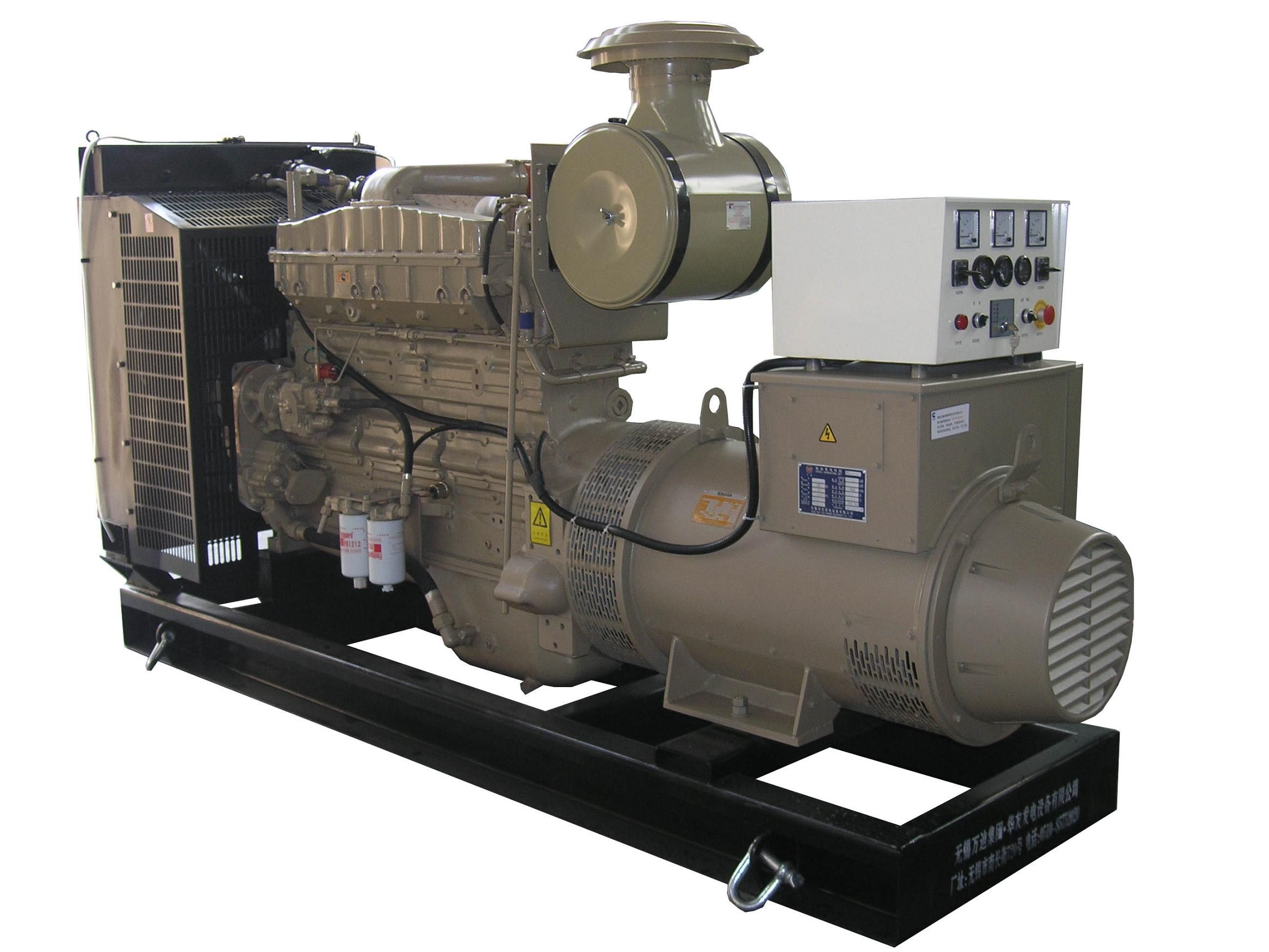

20kw-1200kw CE Certified Cummins Diesel Generator Power

Prod Model:	WD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Jiangsu, China(Mainland)
Brand Name:	Wandi
Model Number:	Wd C1000
Frequency:	50Hz
Rated Power:	1000kw
Rated Voltage:	400/230V
Rated Current:	1800A
Engin Brand:	Cummins
Genset Type:	Open
Engin Color:	Green
Stroke:	Four Stroke
Type:	Basic Diesel Generator
Cooling Method:	Water Cooling
Installation Method:	Fixed
Output Type:	AC Three Phase

Product Description

diesel generator set  with Cummins series (20kw-1200kw) This diesel generating set is with simple&tighten structure, good look and index Specifications: 1) Output range: from 20kW (25kVA) up to 1000kW (1250kVA) 2) Engine model: cummins series 3) Alternator model: Stamford 4) Water-cooled 5) Key start / auto start, low noise 6) Control system: a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat; The water is over temperature; The oil pulls down, over speed, over load and over current b) Operation display: i) Unit voltage, tri-phase load current and frequency display ii) Water temperature, oil pressure display iii) Fuel level, fuel temperature display iv) Audible and visual alarm lamps and buzzers Standard configuration: 1) Engine brand: cummins 2) Alternator model: UCI274E 3) Rated output: 20kW -1000kw 4) Closed cooling 5) Fuel consumption: 196g/kWh 6) Prepare output: 22kw-1100kw 7) Rated voltage: 230 / 400V 8) Rated current: 36A-1800A 9) Power factor: 0.8 lagging 10) Connection type: 3-phase, 4-wire 11) Rated frequency: 50 / 60Hz 12) Excitation way: brush or brushless 13) Rotating speed: 1,500/1,800rpm 14) Overall dimensions: 2,300 x 780 x 1,500mm 15) Weight: 1,210kg 16) Accessories: exhaust elbow, bellow, muffler 17) Supply standard collocation: a) Diesel engine with all accessories, 3 filters and electric systems b) Alternator c) Steel structure d) Fan and water tank cooling system e) Flange connector f) 12 / 24V starting motor and charge engine g) Air cleaner, fuel cleaner, oil cleaner h) On-board control panel i) MCCB air conservation switch j) 12 / 24V starting accumulator and battery line k) Set shock absorber l) High-efficient silencer Company Profile: HOT SALE!!! 20kva-1500kva Diesel Generator    Genset Features:   2. Radiator 40°C max,fans are driven by belt, with safety guard 3. Genuine Stamford, Leroy Somer, Marathon, Engga alternator 4. Choice of manual/auto and AMF control panels and protection systems 5. Digital auto-start panel 6. Anti Vibration Suspension Absorber 7. Dry type air filter, fuel filter, oil filter 8. 10-hour operation base tank 9. Mould case circuit breaker 10. 24V DC start motor and storage battery 11. 24V charge alternator 12. 24V batteries, rack and cable 13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler 14. Comply with ISO and CE standards. 15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)    Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 10 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80DBA / 7m<70DBA    Our Advantages: 1. Solve your technical problems in 24 hours and provide international warranty service for engines 2. Design the appearance form according to customers' request 3. Polyester varnish for appearance protecting for shining and raining 4. Two hours testing before out factory 5. ISO9001 and CE certification Scope of Supply: 1-Brand new engine and brushless AVR controlled alternator 2-Set mounted Smartgen Auto Controller 3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown. 4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank. 5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables. 6-Genset equipped with industrial silencer and flexible exhaust hose. 7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade). 8-Genset with filtering systems including air filter, fuel filter & lub-oil filter. 9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator Scope of supply Engine specification 1.20kw-1000kw CUMMINS engine 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption Alternator: Stamford Option with: Marathon, Lorysomer, A) three phase brushless generator, self-excited, 4-pole, single bearing B) AVR self-regulated, voltage regulation rate ≤ ± 1% C) IP23 protection grade D) Class H insulation E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528 F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof Control system: 1. Automatic cutter which is suitable for the generator power 2. Turn on key 3. A device to measure the generators speed 4. Counter for measuring the Operating hours 5. Device to measure the current overload with a switched current 6. A device to measure the battery voltage 7. Voltmeter with a voltage exchanger 8. A device to measure the frequency 9. Thermostat to regulate the voltage 10. A device to measure the oil pressure 11. Alerting lamps indicating low and high temperature 12. Controller of the current increase and short circuit 13. Emergency stop button Warranty: 12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices Our service quality assurance: 1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing 2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers. 3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance. Genset Model Prime Power Standby Power Genset Power       (KW) 90 18 Engine Manufacturer Dongfeng Cummins Engine Co.,Ltd Engine Model 4B3.9-G1 Engine Structure 4 in line, 4-cycle, naturally Engine Cool System Radiator cooled, fans driven by belt, with safety guard Engine Governor Mechanical Engine Start 24VDC Engine Filter System Air filter, oil filter, diesel filter Fuel System A Type Engine Displacement (L) 50 Fuel Consumption (L/H) 5.6 Compression Ratio 17.5:1 Bore×Stroke         (mm) 102×120 Engine Speed       (RPM) 1500 Air Flow      (m3/min) 190 Exhaust Gas Flow (m3/min) 17.6 Exhaust Temp.     (°C) 570 Max. Back Pressure   (Kpa) 10 Oil Capacity       (L) 16.3 Coolant Capacity   (L) 29 Breaker MCCB Volt/Frequency/PF 380/220V, 50Hz, 0.8, 3 Phase 4 Wire Voltage Regulation, Stead State 0-5% Insulation/Protect Grade H/IP23 TIF/THF TIF<50/ THF<2% Controller Manufacturer Deep Sea Electronics Plc Accessory Battery, battery wire, exhaust pipe, oil pipe, manual Size (mm) 1710*700*1340 Weight (kg) 800 Pakage: Specification of control Panel(with GU620A controller) The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. The features of GU620A controller: GU620A is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED's. True RMS measure of voltage and current. Multi-Language menu. 128 x 64 pixel LCD display. 4 analog inputs for kinds of optional sensors that can be used for measuring oil pressure, coolant temperature, fuel level and so on; parameters can be configured by user. More outputs of configurable auxiliary control relays. More configurable isolated digital inputs. Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status. Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set the running parameters of controller. With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB port for remote communication. Optional CANbus, read and control the parameters for ECU engine. All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device. Shouyld you have any intresets, Please do not hesitate to contact us. Gen-set Data Engine Data Brand                                     WANDI Brand                                     PERKINS Model WD P320 Model 2206A-E13TAG3 Prime power KVA/KW 400/320 Rated power(net) KVA 436 Standby power KVA/KW 440/352 Rated power(net) KW 349 Frequency Hz 50 No. of cylinder 6 Rated voltage V 400/230 Cycle type 4 Rated current A 576 Cylinder arrangement Vertical in line Power factor COS Φ 0.8(lag) Aspiration type Turocharged Fuel tank capacity L 720L Combustion system water cooled Sound pressure level LP dB(A) 1m 85 Bore mm 130 Stroke mm 157 Alternator Data Displacement L 12.5 Brand STAMFORD Compression ratio 16.3:1 Model HCI444F Engine oil capacity L 40 Connecting type 3 phase and 4 wires Max back pressure kpa 10 Excitation type brushless, self excited Total coolant capacity L 51.4 Steady voltage regulation ≤1% Fuel consumption L/H 81 Transient voltage regulation ≤±25% Lubrication consumption L/H 0.81 Frequency recovery time ≤5s Cooling max water temperature   ºC 104 Protection IP23 Governor type Electronic Insulation Class H Start mode Electronic Overload capacity ≤10% Emission standards Europe stage II Standard Configuration: Optional Configuration: System                       Description   System                       Description Engine Perkins Cooling sys Radiator(50ºC) Aspiration sys Air filter Jacket water heater Air restriction indicator Anti-condensation heater Cooling sys Radiator(40ºC) Exhaust sys Residential silencer Fan & belt Alternator Faraday  alternator Exhaust sys Industrial silencer Engga  alternator Fuel sys Fuel-water separator filter Marathon alternator Fuel filter Control module DSE series Fuel hose HGM series Lubrication sys Oil filter Circuit breaker ABB Alternator STAMFORD ATS Hanguang(WHK) Control module Comap MRS10 Aisikai (STK) Circuit breaker Suzhou Other battery charger Battery maintenance-free laminated wood packaging Other 24V start motor Dimension/weight Open Type Dimension(L*W*H) mm 3220*1150*1564 Net weight                 kg 3290 Silent Canopied Type Dimension(L*W*H) mm 4000*1800*2150 Net weight                 kg 5090
