| Prod Model: |
WD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Jiangsu, China(Mainland) |
| Brand: |
Wandi |
| Modle Type: |
Silent Type |
| Frequency: |
50Hz |
| Advantage: |
Fuel Efficiency, Silent Type |
| Rated Voltage: |
400/230V |
| Warranty Period: |
1 Year or 1000 Hours Running Working Hours |
| Option: |
Silent Canopy, ATS, Water & Oil Heater |
| Optional Parts: |
Parallel System, Air Breaker, Basic Fuel Tank.. |
| Engine Standard: |
ISO9001, GB/T2820-97, ISO8528 |
| Stroke: |
Four Stroke |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Three Phase |
Product Description

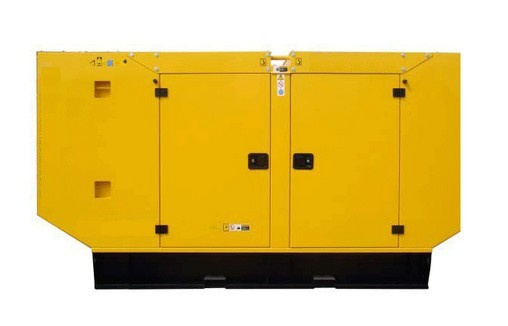

Silent diesel generators
Detailed Selling Lead Description
Trailer gen-set from 20kW to 1000kW can be mobile with the brake, and the engine u can choice( Cummins, Perkins, Volvo and Deutz engine) and global-famous alternator Stamford, Marathon and Leroy Somer,
Installed with spring damping equipment, and two wheels and four wheels structure
Standard configuration supply scope:
(1)Diesel engine with all accessories, 3 filter, electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12V/24vstarting motor and charge engine.
(7)Air cleaner, fuel cleaner, oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12V/24V starting accumulator and bettery line.
(11)Set shock absorber.
Control system:
*Optional brand: Smartgen, Deep Sea, Comap. etc.
*Installation: Airborne type, independently controlled type.
*Manual/automatic control unit start/stop
*The instrumentations and the select switch
*Unite operating parameter display: LCD/graphics/meters
*Auto start switching when the main power falls (optional)
*Automatic parallel connection control module of multi-generator sets(optional)
*The functions of remote control interface, remote control, remote test and remote sigal(optional)
*MCCB air switch protects overload short-circuit(optional)
Optional Accessories
1, Preheating Start System
2, Diesel Engine Thermal Protection System
3, Jacket Heater
4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
5, Breaker
6, Antifreeze Liquid
7, Ground Wire
8, Water Temperature Safety Device
9, Machine Oil
Service Conditions
-- Ambient Temperature: -25° C~40° C
-- Altitude: Not exceed 1000 Meter
-- Rated Voltage: 230/380V or any voltage between 220-440V
-- Rated Frequency: 50Hz/60Hz
-- Insulation Class: B/F/H
-- Working Duty: S1(Continuous)
-- Humidity: Lower than 95%
Excellent access for maintenance
1) Two doors on each side
2) Radiator fill access plate
3) Lube oil and cooling water drains piped to exterior of the enclosure
4) Operate easily, and can be used outside while no room has to be built for it, Large bottom fuel tank ensures long working time
Warranty
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Products and package: \
| Volvo Generator Set | | Engine |
| Brand WANDI | Brand VOLVO PETNA |
| Model | | WDV120 | Model | | TAD731GE |
| Prime power | KVA/KW | 150/120 | Rated power(net) | KVA/KW | 165/132 |
| Standby power | KVA/KW | 165/132 | No. of cylinder | | 6 |
| Frequency | Hz | 50 | Cycle type | | 4-cycle |
| Rated voltage | V | 400/230 | Cylinder arrangement | | Vertical in line |
| Rated current | A | 216 | Aspiration type | | Turbocharged |
| Power factor | COS Φ | 0.8(lag) | Combustion system | | water cooled |
| Fuel tank capacity | L | 340 | Speed mode | | Mechanical |
| Sound pressure level LP | dB(A)1m | 85 | Bore | mm | 108 |
| Alternator | Stroke | mm | 130 |
| Brand | FARADAY | Compression ratio | | 18.0:1 |
| Model | FD3D | Displacement | L | 4.67 |
| Connecting type | 3 phase and 4 wires | Engine oil capacity | L | 20 |
| Excitation type | brushless, self excited | Total coolant capacity | L | 23.8 |
| Steady voltage regulation | ≤ 1% | Exhaust smoke | | 1bosch |
| Transient voltage regulation | ≤ ±25% | Lubrication consumption | L/H | 0.1 |
| Frequency recovery time | ≤ 3s | Fuel consumption | g/kw@h | 215 |
| Protection | IP23 | Cooling max water temperature | ºC | 104 |
| Insulation | Class H | Governor type | | Electronic |
| Overload capacity | ≤ 10% | Start mode | | Electronic |
| | | Emission standards | | Europe stageII |
| Dimension/weight | |
| Open type | Soundproof canopy type |
| Dimension (L*W*H) | mm | 2466*866*1437 | Dimension (L*W*H) | mm | 3000*1240*1760 |
| Net weight | kg | 1450 | Net weight | kg | 2270 |
| 1. Specification of genset |
| Gensets model | WD |
| Prime power | 1000kw |
| Rated Voltage | 400/230V |
| Rated frequency(HZ) | 50 |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 4950x2060x2350 | open type |
| Genset Weight(kg) | 12000 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | KTA50-G3 |
| Number of Cylinders | 16 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged, Air/Water cooling |
| Fuel System | PT type fuel pump, EFC |
| Bore×Stroke (mm×mm) | 159 x 159 |
| Displacement (Liter) | 50.3 |
| Compression Ratio | 13.9:1 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Total lubrication system capacity (L) | 177 |
| Fuel Consumption at 100% Load (g/kw.h) | 197 |
| Starting Method | DC24V electrical starting |
| 3. Specification of alternator |
| Alternator brand | Kaijieli(China-French joint venture Leory Somer technology) |
| Alternator model | TWGII404G |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP21 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| 4. Specification of control Panel(with Kaixun controller) |
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. |
| The features of Kaixun controller controller: |
| Kaixun controller is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. |
Standard Supply Scope:
1. Diesel engine with Alternator
2. Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
3. Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
5. Radiator is standard , Strat battery and charger
Select Supply Scope:
1,Silent ,Mobile,Container,weatherproof types canopy and trailer
2.Connect to main ,all panels:Circut Breaker,ATS,etc
3, Water & oil heater, oil-water separator, air breaker, base fuel tank.
Packaging& Shipping:
1, Plastic film package, depends on Client's requirement
2, 35days after First Payment of a deposit,Accept FOB,CIF,EXW,etc
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer's workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser's satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
