| Prod Model: |
WDP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Jiangsu, China(Mainland) |
| Engine Brand: |
Perkins |
| Type Of Model: |
Opentype / Soundproof |
| Rated Voltage: |
230V/400V |
| Model Speed: |
1500rpm |
| Frequency: |
50Hz/60Hz |
| Rated Current: |
40A |
| Certificates: |
ISO & CE&EPA an So on |
| Warranty: |
12 Months or 1000 Running Hours |
| Payment: |
T/T, L/C |
| Stroke: |
Four Stroke |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Three Phase |
Product Description
50HZ 7KW Open type/ Soundproof diesel generator sets
Engine
1.All series powered by the DONGFENG
CUMMINS engine,excellent transient response
characteristics,low fuel consumption,
environmental ,high reliability, long working
life.Conform to the standard of IS03046.
Generator Supply Scope:
1.Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.brand-new engine, w/ start motor.
3.brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
4.auto control panel, with LCD display.
5.Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
5.Circuit Breaker,Exhaust Silencer
6.Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
7.Anti-vibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
8.Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Alternator
2. All series adopt alternator of
Stamford/Marathon/Engga;Excellent excitation
characteristics, Ensure that the genset can withstand
high power load moment,small Voltage
fluctuation ,quickly recover. Conform to the standard
of GB755,BS5000,IEC34-1,CSA22.2,AS2359
1. Bearing: Single
2. Insulation Class: H
3. Phase: 3 Phase 4 wires
4. Protection Degree: IP 23
5. Excitation way: Brushless Excitation
6. Type: Leroy-somer, Stamford, Marathon for your option
Controller system
3. All series use POWERTEC GC6110 as controller.
Integrating digital, intelligent, network
technology,use For a single diesel generator set
automation and monitoring system,Implement a
automatic starting/stopping ,The data
measured,Alarm protection function of the genset.
Features:
Perkins Engine:
Compact design, easy to start & maintenance.
Low fuel consumption, low vibration & low noise.
Strong clod start, adaptable to different working conditions.
Low emissions-compliant with Europe stage II.
Global service network for excellent after-market service.
Stamford Alternator:
Compact, low noise, high reliability.
Class H insulation, IP23 protection.
Small voltage harmonic distortion of non-linear load.
2/3 pitch winding effectively removes the third harmonic voltage...
Damper winding excitation.
Comap Control Module.
Microprocessor based Intelligent controller.
Real-time display of engine and alternator operating parameters.
Monitor engine and alternator running status.
Gen-set alarming and performance message.
Manual and Automatic Mode.
LCD display, LED indicator.
Automatic start/Stop
Control ATS
Protection and Control and Alarming:
Water Temperature
Oil/Fuel Pressure
Engine revolve speed
Ampere Control
Voltage Control
Wire disfunction detecting
Remote control by computer, control cabinet, Even by mobile
1. Protection and indication of low oil pressure, High water/Cylinder temperature , over spped, emergency stop, fail start
2. Offer excitation function
3. Idle control and mains sensor stop
4. Speed signal according to generating frequency
5. LCD indicate state of running and alarming
6. Relay output (fuel ,start,stop,idle output)
7. programmabie output, setting alarming ,stop failure, pre-heat and generating failure.
8. In-build watchdog program ensure no corruption
9. Modular structure desing, ABB flame
45kva Perkins diesel generator specification:
Set Model
R-P45D
Prime at 50HZ, 40°C ambient
36KW 45KVA
Standby at 50HZ, 40°C ambient
40KW 50KVA
Rated Gen-set output
230/400V 50Hz
Rated Relative humidity
≤ 60 %
Dimension (L×W×H)
1950×850×1150mm
Weight
1100kg
Fuel consumption 100% prime load
12.7L/H
Total heat radiated to ambient
/
Structure of Gen-set
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set
Control system (Optional)
Basic control panel or Advanced control panel with automatically start-up function and other function
Perkins engine specification:
Engine Brand
Perkins
Engine Model
1103A-33TG1
Governor/Class
/
Cylinder NO.
4
Engine build
Vertical in-line
Fuel spray pattern
direct injection
Aspiration
Turbocharged
Cooling mode
Radiator cooled (enclose water)
Bore and stroke
105×127mm
Compression ratio
18.2:1
Displacement
4.41L
Engine Prime Power at 1500rpm
53KWm
Engine Standby Power at 1500rpm
59KWm
Start-up mode
12V, electric
Battery capacity
/
Starting/Min temperature
/
Lubricating oil consumption
Lubricating oil consumption less than 10% Fuel consumption
Lubrication oil capacity
8.5 litres
Coolant capacity - radiator and engine (40°C)
12.6litres

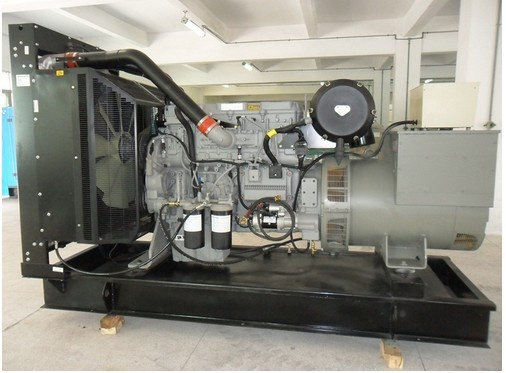

Prime Powe 45kva Diesel Generator Set With Perkins 1103A-33TG1
For 75 years Uk imported engine has led the field in the design and manufacture of high-performance diesel engines. Its continuous development programme allows Pekins to offer one of the most advanced and comprehensive ranges of purpose-built diesel engines available today.
Ranging from 5 to over 2,600 hp, the engines power more than 5,000 different applications from over 1,000 major equipment manufacturers in the construction, power generation, materials handling, agricultural and general industrial markets.
Trade Terms of Products
Generator Warranty
1800 hours or 1 year subject to the ealier one.
Delivery Items
FOB,CNF,CIF,EXW,Delivery Guangzhou
Delivery Time
15-20 days after receiving advanced payment.
Generator MOQ
1PCS
Package
PE Film+Pearl Wool+Iron Frame (standard export packing)
Certificate
SGS;Cummins Authorized Factory;TUV;Soncap
Port
Guangzhou,Shenzhen,Shanghai
Payment
T/T Cash or Western Union
Please give detail needs in your inquiry, so that we can make power solutions for you.
High performance
multi-way air intake and exhaust guarantee the power performance of generator.
large-scale impedance combined type silencer effectively reduce noise of the generator.
Construction features
Cold steel materials.
Zinc plated and Corrosion resistance.
Elegant appearance and reliable quality.
Stainless steel locks and hinges.
Access to all weather conditions.
Fireproof, waterproof and dustproof.
Ladders in the side for easy access to the top.
High quality soundproof materials could efficiently reduce noise.
Maintenance features
180° revolvable and disassemble door for easy maintenance.
Container type locks for easy operation and indefectible.
Lights inside of the canopy for maintenance.
Security and Safety
Transparent viewing window make the control panel clear at a glance.
Emergency stop button mounted on the canopy exterior.
Pipe of lube oil and cooling fluid is mounted on the bottom of generator for easy let.
Fuel refill and battery can easily be accessed by lockable door.
Cooling fan and battery are fully guarded.
Heat insulation of exhaust smoke system inside the canopy.
Fire extinguishers are easily got at the door.
Transportation
Lifting ear is mounted in the base frame and on the top.
Standard container size or special size
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
