| Prod Model: |
AD550-I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
1500rpm, 1800rpm |
| Frequency: |
50Hz, 60Hz |
| Engine Model: |
P180le |
| Alternator: |
Leroy Somer, Stamford, Marathon |
| Controller: |
Deepsea, Woodward, Deif, Comap |
| Noise DB: |
65-75dB |
| Rated Power: |
400kw/500kVA |
| Rated Current: |
1440AMP |
| Quality Control: |
ISO9001, ISO14000, CE, Soncap |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

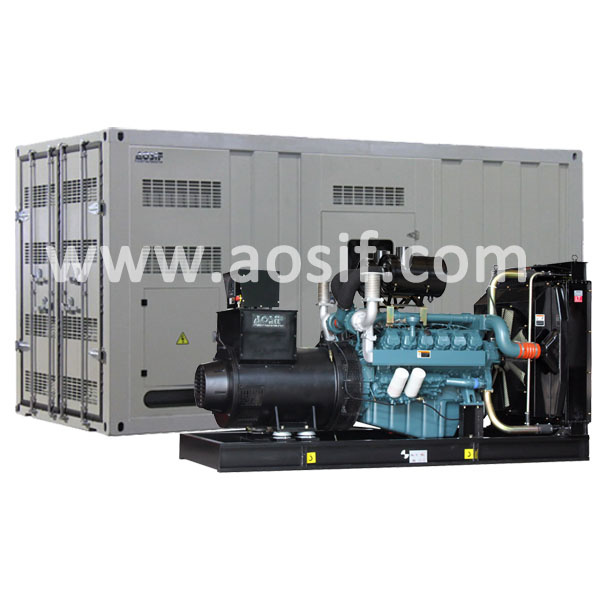

Aosif diesel 500kva doosan generator super silent
1. P: 500kVA container generator
2. Engine: P180LE
3. Alternator: LSA47.2M7
4. Water-proof, fire-proof, dust-proof
5. Powderpain
AOSIF container type silent generators design is based on the normal or automatic diesel
Generator set and extended with the state-of-art noise enclosure to make the noise of the generator less than 85dB(A) at 1m, or 70~75dB(A) at 7m, 60~65dB(A) at 15m.
High Performance
1. Multi-way air intake and exhaust guarantee the power performance of generator.
2. Large-scale impedance combined type silencer effectively reduce noise of the generator.
Construction features
1. Cold steel materials.
2. Stainless steel locks and hinges.
3. Access to all weather conditions.
4. Fireproof, waterproof and dustproof.
5. Zinc plated and Corrosion resistance.
6. Elegant appearance and reliable quality.
7. Ladders in the side for easy access to the top.
8. High quality soundproof materials could efficiently reduce noise.
Maintenance features
1. With180° Revolvable and disassemble door for easy maintenance.
2. Container type locks for easy operation and indefectible.
3. Lights inside of the canopy for maintenance.
Security and Safety
1. Cooling fan and battery are fully guarded.
2. Fire extinguishers are easily got at the door.
3. Emergency stop button mounted on the canopy exterior.
4. Heat insulation of exhaust smoke system inside the canopy.
5. Fuel refill and battery can easily be accessed by lockable door.
6. Transparent viewing window make the control panel clear at a glance.
7. Pipe of lube oil and cooling fluid is mounted on the bottom of generator for easy let.
Transportation
1. Standard container size or special size for choices.
2. Lifting ear is mounted in the base frame and on the top.
| Manufacturer | Doosan Engines Company Limited |
| Model | P180LE |
| Engine speed | 1500rpm |
| Engine power |
|
| ----------------------------Standby power | 496kw |
| ----------------------------Prime power | 443kw |
| Type | 4 stroke cycle , V type, 10 cylinder |
| Aspiration | Turbo charged & intercooled (air to air) |
| Bore * Stroke | 128*142 mm |
| Cubic capacity | 18.273 L |
| Compression ratio | 15:1 |
| Manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
| Model | LSA47.2M7 |
| Output power | 400KW |
| AVR model | R250 |
| Number of phase | 3 |
| Power factor (Cos Phi) | 0.8 |
| Altitude | ≤ 1000 m |
| Overspeed | 2250RPM |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±1% |
| Sustained short circuit current | 300% (3 IN) : 10s |
| Total harmonics (TGH/THC) | no load < 3% - on load < 2% |
| Wave form : NEMA = TIF | < 50 |
| Wave form : I.E.C. = THF | < 2% |
| Bearing | single |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
