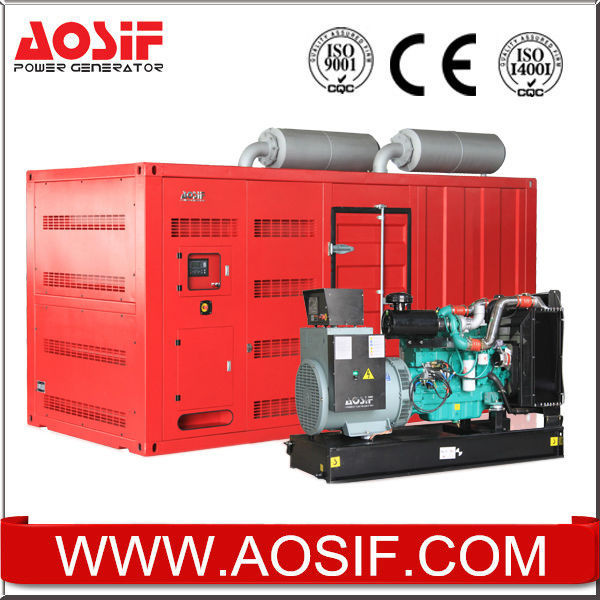

Aosif Silent Diesel Generator with CE and ISO

Prod Model:	AS10-2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	Deutz
Alternator:	Leroy Somer, Stamford, Marathon
Rated Power:	120kw/150kVA
Rated Voltage:	230/400, 220/380
Rated Current:	360amp
Fuel Consumption:	198g/Kw. H
Insulation:	H
Protection:	IP23
Certification:	CE, ISO9001, 14001, Sancap
Frequency:	50Hz, 60Hz
Stroke:	Four Stroke
Cooling Method:	Water Cooling

Product Description

AOSIF Deutz Generator with CE, ISO

1. Deutz+Leroy Somer, Stamford

2. Smartgen, deepsea, Comap control

3.1000 running hours warrrant

General Configuration

1) Based Frame with 8 hours Fuel Tank.

2) AOSIF Control panel with Smartgen6110 control module

3) Two pieces of 120 AH battery

4) Set mounted Copper Radiator

5) High quality main circuit breaker.

6) Optional AOSIF soundproof/waterproof canopy and movable trailer

Accessory: Exhaust silencer, Flexible pipes, flange, Battery wires, Battery charger Float battery charger, AVR, Wires diagram, manual books.

We can also supply the Stamford, Marathon and Kaijieli alternator, you can choose you like.

Control System:

1. Protection: Automatic start/stop, load transfer and alarming of generator;

2. Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level

3. Sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select "user defined" sensor via entering 8 point curves;

4. Display of generator cumulated electric energy;

5. Security password-protected programming levels.

6. Several crank success conditions are optional;

7. Power supply range is wide, accommodating to different starting battery voltage environments;

8. All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;

9. Built-in watch dog can never be dead halt, ensuring smooth program execution;

Engine: Manufacturer	Weifang Weichai Deutz Diesel Engine Co., LTD
Model	TBD226B-6D5
Engine Configuration	6-cylinder in line, 4storke, Exhaust gas turbocharged, direct spray fuel system
Displacement	6.23 L
Engine Cooling Mode	The radiator suitable for 40° C  temperature, strap drive the cooling fan with protection cover
Speed control panel	Mechanical speed controller, electricity-magnet valve conrol switch
Start mode	24V Direct Current Start, including alternator& battery
Engine Filter System	Dry air filter type, Fuel filters, Lube filter
Compression Ratio:	16.0: 1
Bore and Stroke: (mm)	105× 120
100%Load fuel consumption      (L/h)	30.3
Specific fuel consumption  (g/kwh)	≤ 198
Lubricating oil consumption          (g/kwh)	≤ 1.36
Exhaust Air Flow  (m3/min)	120
Air consumption	9
Exhaust gas Flow(m3/min)	19.75
Exhaust gas Temperature(° C)	500
Oil Capacity(L)	13
Coolant Capacity(L)	27

Alternator: Manufacturer / Model	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Model	LSA44.2 M95
Output power	120KW
AVR model	R250
Number of phase	3
Power factor (Cos Phi)	0.8
Altitude	≤ 1000 m
Overspeed	2250RPM
Number of Pole	4
Exciter type	Shunt
Insulation class	H
Voltage regulation	± 0.5%
Sustained short circuit current	300% (3 IN): 10s
Total harmonics (TGH/THC)	< 2%
Wave form: NEMA = TIF	< 50
Wave form:   I. E. C. = THF	< 2%
Bearing	single
Coupling	Direct
