| Prod Model: |
GF2 -500kw |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gf2-500kw: |
500kw |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Sixteen Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

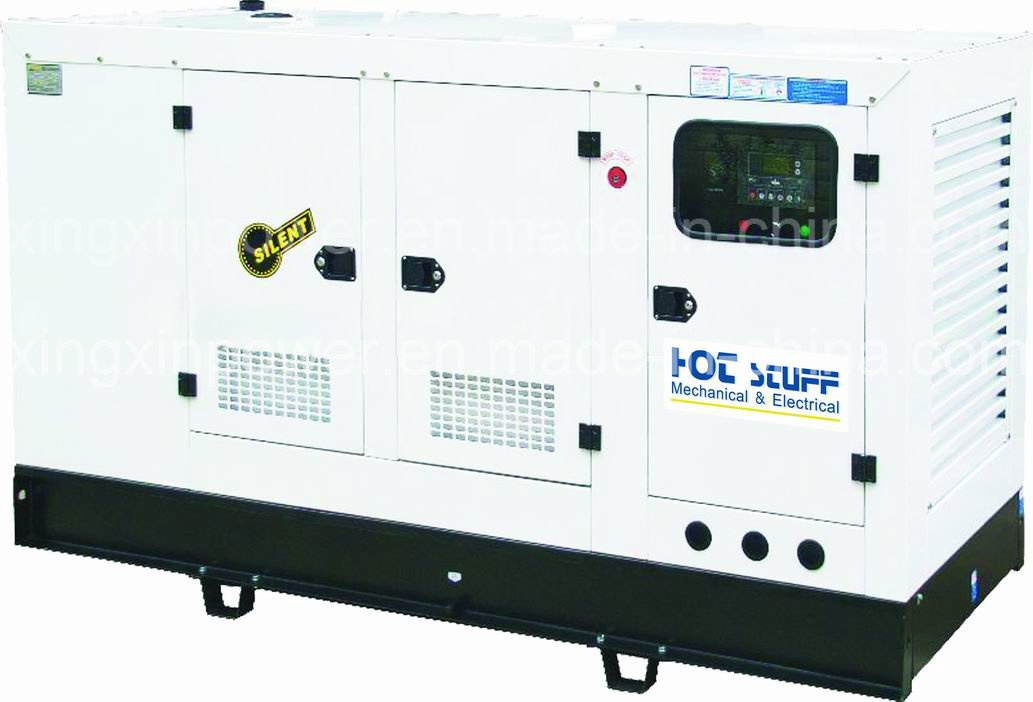

500 kw silent big generator, optional engine: cummins engine,optional functions: ATS , remote control and so on functions
| MODEL | GF2-500KW/625KVA |
| Powered by Cummins Engine |
| Prime Power (50HZ/60HZ) | 450KW/563KVA |
| Standby Power (50HZ/60HZ) | 500kw/625KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Fuel Consumption | 97L/h at 100% Load |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | KTAA19-G5 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 159X 159 |
| Compression Ratio | 13.9:1 |
| Speed | 1500rpm/1800rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 17 |
| Engine Displacement (L) | 19 |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 50 |
| Coolant Volume (L) | 95 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Stanford Copy HCI544E |
| Alternator Power | 450KW/563KVA |
| Voltage | 220/380 V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 6700 |
| Dimensions (L x W x H) mm | 3500*1200*1900 |
| Optional | ATS (auto transfer switch) |
| AUTO Battery Charger |
| Base Fuel Tank (for open type) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
